Overview
100 tons that drives itself, then goes off-road.

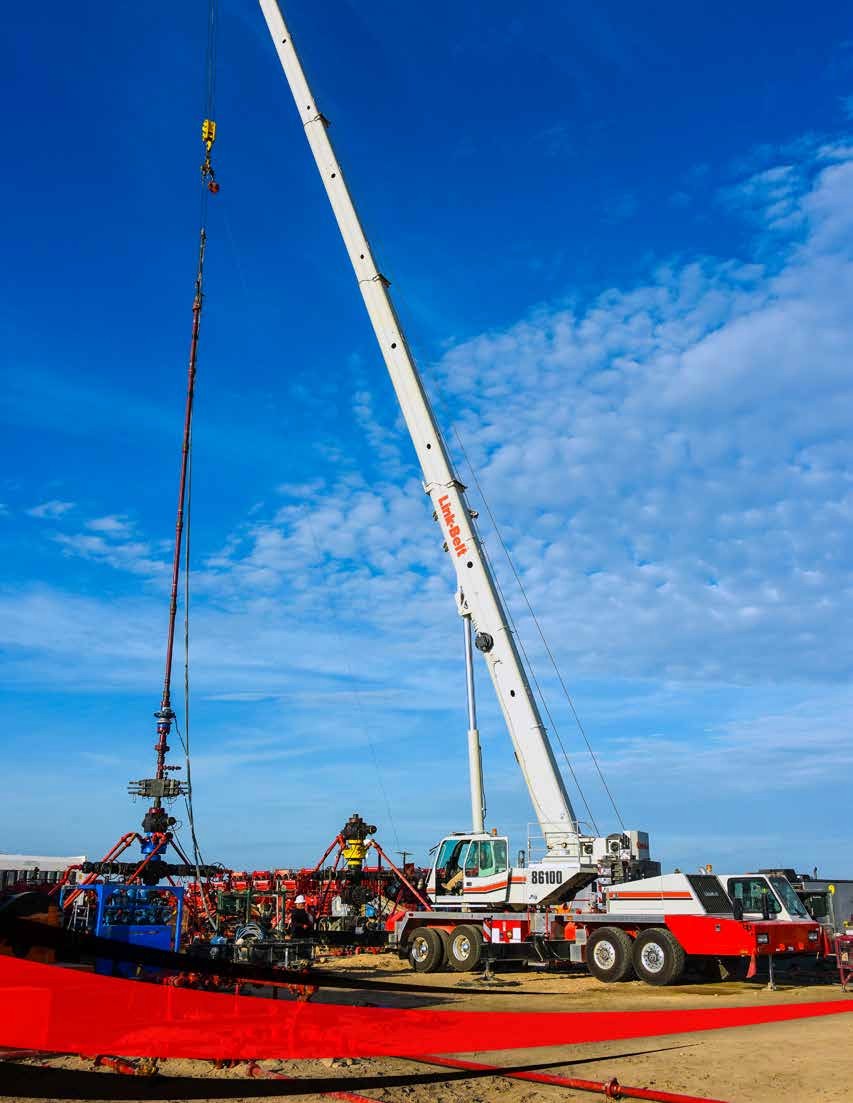

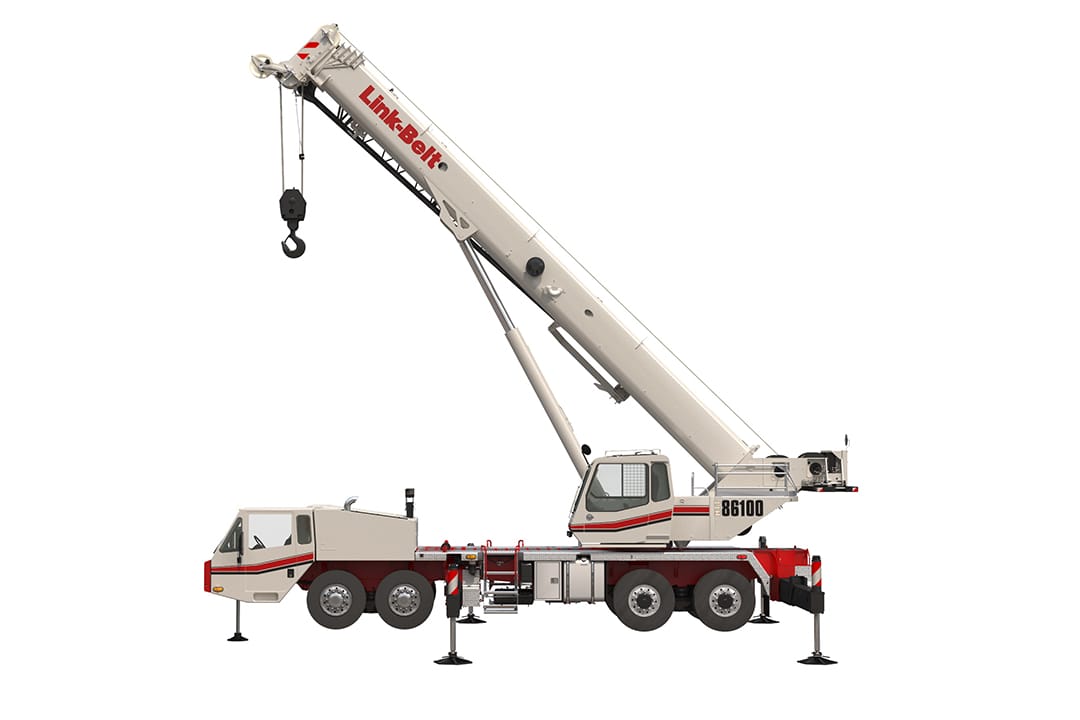

The HTT-86100 pairs a five-section boom with a single-cab, all-wheel-drive 8×4 chassis. It drives itself to the jobsite on public roads at up to 61 mph, then steers into a tight, unimproved footprint and sets up on CALC outriggers to lift at full rated capacity. The boom telescopes to 140 ft, and with the bi-fold fly and lattice extensions it reaches a 237 ft tip height.
Every function runs through Link-Belt Pulse, with an integrated rated capacity limiter, telematics, and real-time load and radius readout. A Cummins X12 (450 hp) drives both the road and the crane functions through a ZF TraXon automated manual transmission; a Cummins QSX15 (480 hp) Tier 3/Stage IIIA option is available where accepted.
Five-section boom
CALC outriggers
Pulse
8×4 all-wheel chassis
61 mph travel
Why the HTT-86100
100-ton capacity, jobsite maneuverability.
Link-Belt Pulse
Integrated RCL, anti-two-block, real-time load and radius readout, and operator-settable alarms.
CALC outriggers
Confined-area lifting with selectable full, intermediate, or retracted outrigger positions on both sides.
Single-cab, all-wheel steer
One cab for driving and lifting on an 8×4 chassis gives it a tighter jobsite turning radius than a telescopic truck crane.
Five-section boom
38 to 140 ft with five extend modes, reaching 237 ft with the bi-fold fly and both lattice extensions.
Telematics standard
Cellular location, usage, maintenance, and fault-code monitoring, so your fleet team sees the machine before it calls in.
Cummins X12
450 hp and 1,550 ft·lb of torque, run through a ZF TraXon 12-speed automated manual.
Specifications
The full technical picture.
Representative specifications for the Link-Belt HTT-86100. Always refer to the in-cab Crane Rating Manual for allowable lifting capacities.
Lifting & Boom
| Maximum rated capacity | 100 US tons (91 mt) @ 7 ft |
| Main boom | 38 – 140 ft (11.6 – 42.7 m) |
| Boom sections | Five, formed construction |
| Boom extend modes | Five (EM1–EM5) |
| Boom elevation | −3° to 80° |
| Max tip height (main boom) | 148 ft (45.1 m) |
| Max tip height (bi-fold fly) | 205 ft (62.5 m) |
| Max tip height (fly + 2 ext.) | 237 ft (72.2 m) |
| Fly | 35 – 58 ft two-piece bi-fold, offsettable 2–45° |
| Counterweight | Up to 39,500 lb, configurable |
Engine & Drivetrain
| Engine | Cummins X12, 6-cyl diesel |
| Rated power | 450 hp (336 kW) @ 1,800 rpm |
| Peak torque | 1,550 ft·lb (2,102 N·m) @ 1,200 rpm |
| Emissions | EPA 2021 (Tier 3/Stage IIIA avail.) |
| Transmission | ZF TraXon, 12F / 2R automated manual |
| Drive | 8×4 on/off-highway |
| Max travel speed | 61 mph (98 km/h) |
| Fuel tank | 80 gal (302.8 L) |
Carrier & Outriggers
| Carrier width | 8 ft 6 in (2.6 m) |
| Wheelbase | 23 ft 10 in (7.26 m) |
| Steering/drive | Front tandem steered, rear tandem driven |
| Outriggers | Four dual-stage + front bumper, CALC |
| Main jack reaction | 106,000 lb (471.5 kN) |
| Front bumper reaction | 51,000 lb (226.9 kN) |
Hydraulics & Tech
| Combined pump capacity | 188 gpm (711.7 L/min) |
| Hydraulic reservoir | 144 gal (545.1 L) |
| Max line pull | 16,880 lb (75.09 kN) |
| Operating system | Link-Belt Pulse |
⬇
HTT-86100 Technical Data
Full specifications & capacity charts (PDF)
⬇
HTT-86100 Brochure
Overview & feature highlights (PDF)
Questions, answered
Link-Belt HTT-86100 FAQ
How much can the Link-Belt HTT-86100 lift?
The Link-Belt HTT-86100 has a maximum rated capacity of 100 US tons (91 metric tons) at a 7-foot radius.
What is the maximum tip height of the HTT-86100?
Maximum tip height is 148 ft on the main boom alone, 205 ft with the two-piece bi-fold fly, and up to 237 ft with the fly plus two 16 ft lattice extensions.
What engine powers the Link-Belt HTT-86100?
A Cummins X12 six-cylinder diesel producing 450 hp (336 kW) at 1,800 rpm in EPA 2021 trim, paired with a ZF TraXon automated manual transmission. A Cummins QSX15 (480 hp, Tier 3/Stage IIIA) is available where accepted.
How fast can the HTT-86100 travel on the highway?
The HTT-86100 is governed to approximately 61 mph in 12th gear, allowing it to drive itself between jobsites at highway speed.
How long is the main boom on the HTT-86100?
The HTT-86100 uses a five-section pin-and-latch boom that extends from 38 ft to 140 ft, with five operator-selectable extend modes.
What is a truck terrain crane, and how is the HTT-86100 different from a telescopic truck crane?
A truck terrain crane like the HTT-86100 uses one cab for both driving and lifting on an all-wheel-drive, all-wheel-steer chassis, giving it a tighter jobsite turning radius than a telescopic truck crane’s separate carrier-and-upper-cab layout, while still driving itself between jobs on public roads.
Can I rent or buy a Link-Belt HTT-86100 from HOLT?
Yes. HOLT Crane & Equipment sells and rents the Link-Belt HTT-86100 across north, northeast, central, and west Texas, and southern New Mexico, backed by factory-trained service and genuine parts. Call 877-275-1520 for availability.
