Link-Belt® · Lattice Crawler Cranes
Machines for the toughest jobs.
From the 80-ton 138 HSL to the 300-ton flagship 348 Series 2, the Link-Belt® lattice crawler cranes deliver the capacity needed for the most demanding jobs. HOLT Crane services every model we sell and rent across north, northeast, central, and west Texas, and southern New Mexico.
Overview
Heavy-duty capacity and reach.
A lattice crawler crane rides on two sets of steel tracks and lifts with a lattice, or truss-style, boom, cross-braced open sections that are bolted and pinned together on site. That construction is what lets this class of crane reach hundreds of tons of capacity and boom lengths past 350 feet. The crane is trucked in multiple loads and assembled on site, often self-assembling its own boom and counterweight with hydraulic systems built into the carrier.
Every Link-Belt® model in this line runs a Cummins engine, either the QSB6.7 across the six smaller HSL/V models or the larger QSL9 in the 298 and 348 Series 2, so the choice between models comes down to capacity, boom and jib configuration, and how the job needs to be rigged.
The Lineup
Eight capacities, one heavy-duty platform.
Tap a card for the full spec sheet to review your options. Contact us and we’ll help you find the crane you need.
348 Series 2
The flagship of the line: Heavy Duty or Long Range boom, up to 450 ft of tip height.

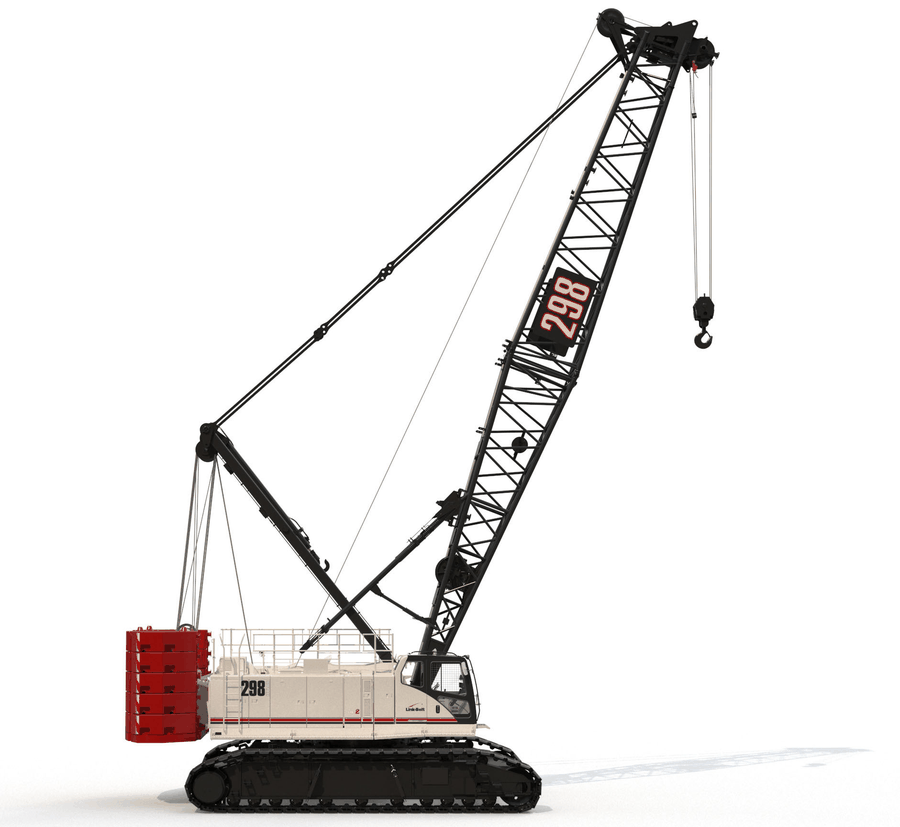

298 Series 2
Self-assembly capable, with a luffing combination that reaches 379 ft.

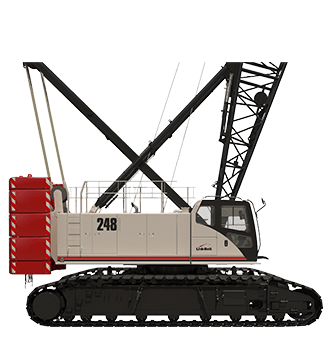

248 HSL
Link-Belt's established 200-ton HSL platform, running alongside the newer 248|V.

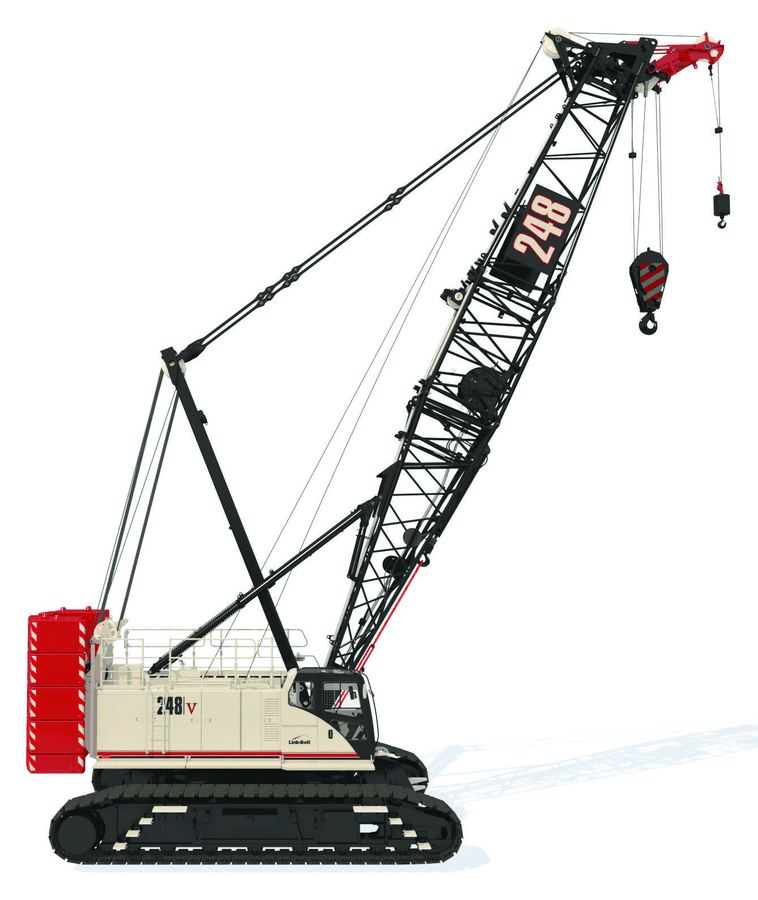

248|V
The newest 200-ton crane: 12 in touchscreen limiter, luffing jib, iCraneTrax.

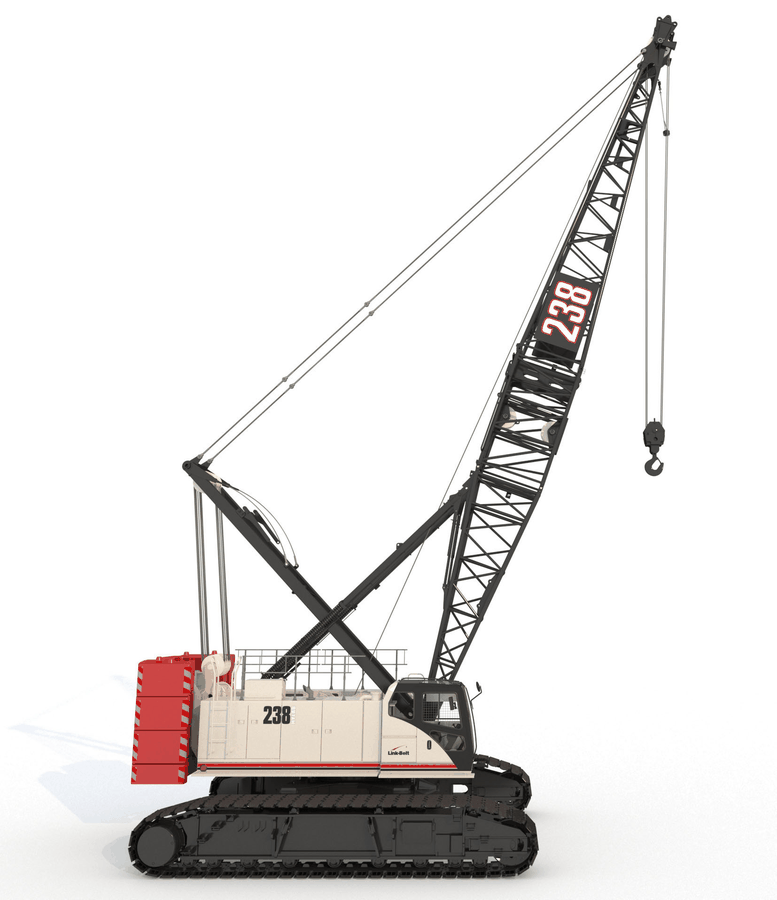

238 HSL
The mid-size step between the 228 HSL and 248 HSL, on 44 in track shoes.

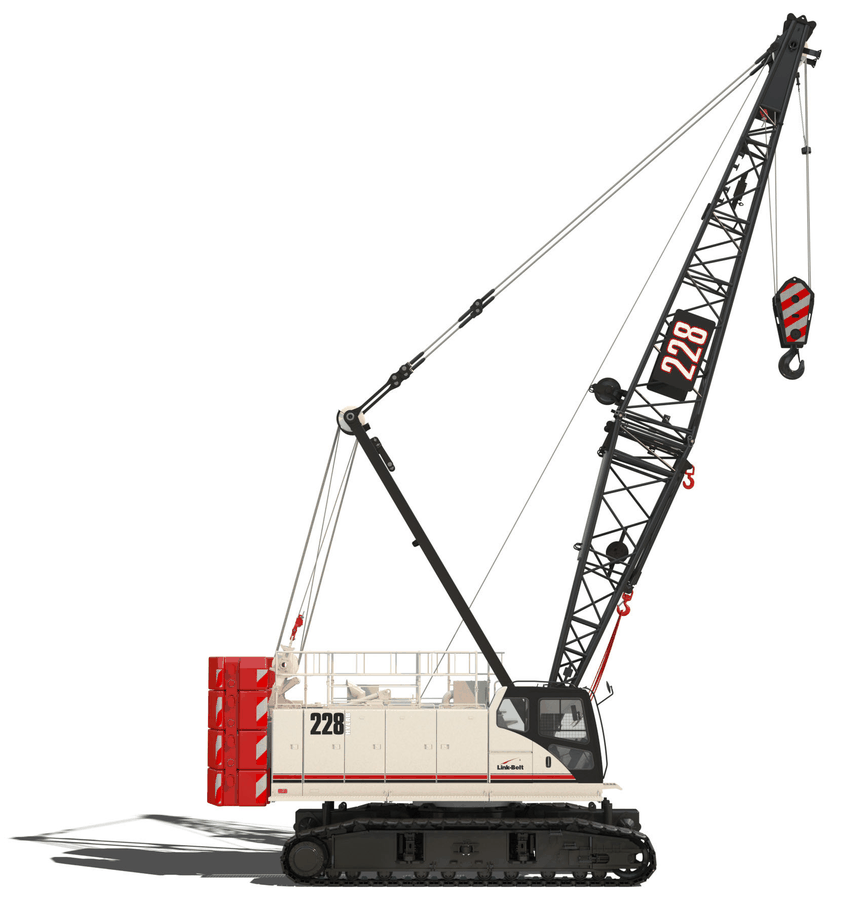

228 HSL
Tube or luffing boom on one carrier, the fastest crawler travel speed in the line.

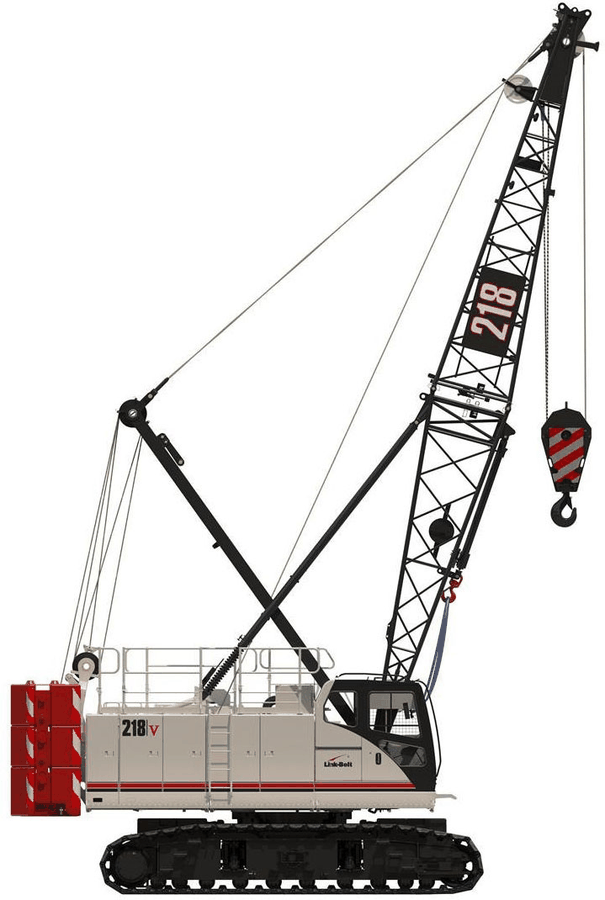

218|V
A 12 in touchscreen RCL and live ground bearing pressure on a 230 ft tube boom.

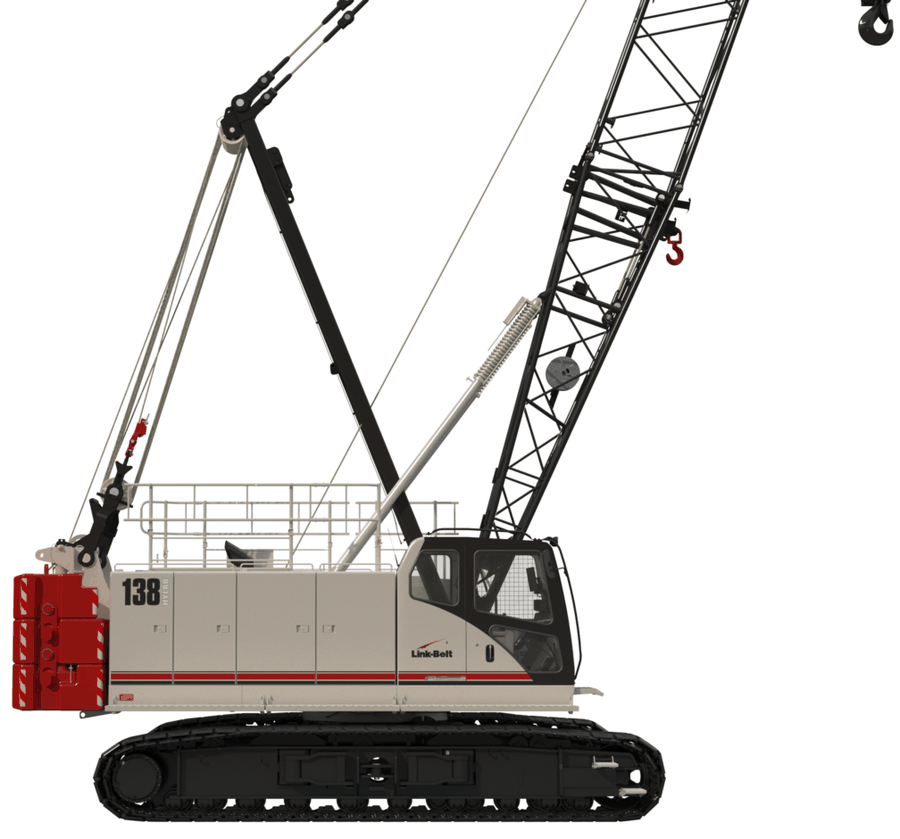

138 HSL
The entry point into the current lattice crawler line, with the fastest swing speed in the family.
Why Lattice Crawler
Where this class of crane earns its keep.
Capacity a telescopic crane can’t match
Lattice construction scales to 300 tons in this line, well past what a telescoping boom can carry at comparable weight.
Fixed and luffing jib options
Stack a fixed or luffing jib onto the main boom for tip heights up to 450 ft on the largest model in the family.
Self-lowering counterweight
Every model in this line lowers its own counterweight to the ground using removal cylinders or its own gantry, no separate crane needed.
Low ground bearing pressure
Wide crawler tracks spread the load across a large footprint, letting these cranes work on softer ground than wheeled machines.
Self-assembly on the larger models
The 298 and 348 Series 2 can lift off maximum boom or boom plus jib and luffer largely unassisted, speeding up mobilization.
Backed by HOLT Crane
Every model we sell or rent is serviced by our factory-trained technicians, with genuine Link-Belt® parts.
Questions, answered
Lattice Crawler Crane FAQ
What is a lattice crawler crane?
A lattice crawler crane rides on two sets of tracks and uses a lattice, or truss-style, boom built from cross-braced open steel sections instead of a smooth telescoping tube. That construction lets a lattice crawler reach far higher capacities and boom lengths than a telescopic crane, at the cost of needing to be trucked in and assembled on site rather than driving there itself.
What is the difference between a lattice crawler and a telescopic crawler crane?
Both ride on crawler tracks, but a lattice crawler’s boom is a cross-braced truss structure assembled from sections on site, while a telescopic crawler has a smooth boom that extends hydraulically like a telescopic truck or rough terrain crane. Lattice crawlers generally reach higher capacities; telescopic crawlers set up and move faster.
What size lattice crawler crane do I need?
It depends on your maximum load, radius, and required boom or jib length. Link-Belt’s current US and Canada line runs from the 138 HSL (80 US tons) up to the 348 Series 2 (300 US tons), with the 218|V, 228 HSL, 238 HSL, 248 HSL, 248|V, and 298 Series 2 in between. HOLT can help match a load chart to the right model.
Do these lattice crawlers offer a luffing jib?
The 228 HSL can run a luffing boom configuration, and the 248|V, 298 Series 2, and 348 Series 2 all offer a dedicated luffing jib attachment for extra height and steeper working ranges in tight quarters.
Does HOLT sell and service the whole Link-Belt lattice crawler line?
Yes. HOLT Crane & Equipment sells, rents, and services the Link-Belt lattice crawler crane line across north, northeast, central, and west Texas, and southern New Mexico, backed by factory-trained technicians and genuine parts. Call 877-275-1520 to talk through your project.
Not sure which model fits the job?
Tell us the load, the radius, and the boom or jib configuration you need. We’ll match the right lattice crawler crane, for sale or rental.
