Overview
110 tons of Tier 4 Final lattice capacity.

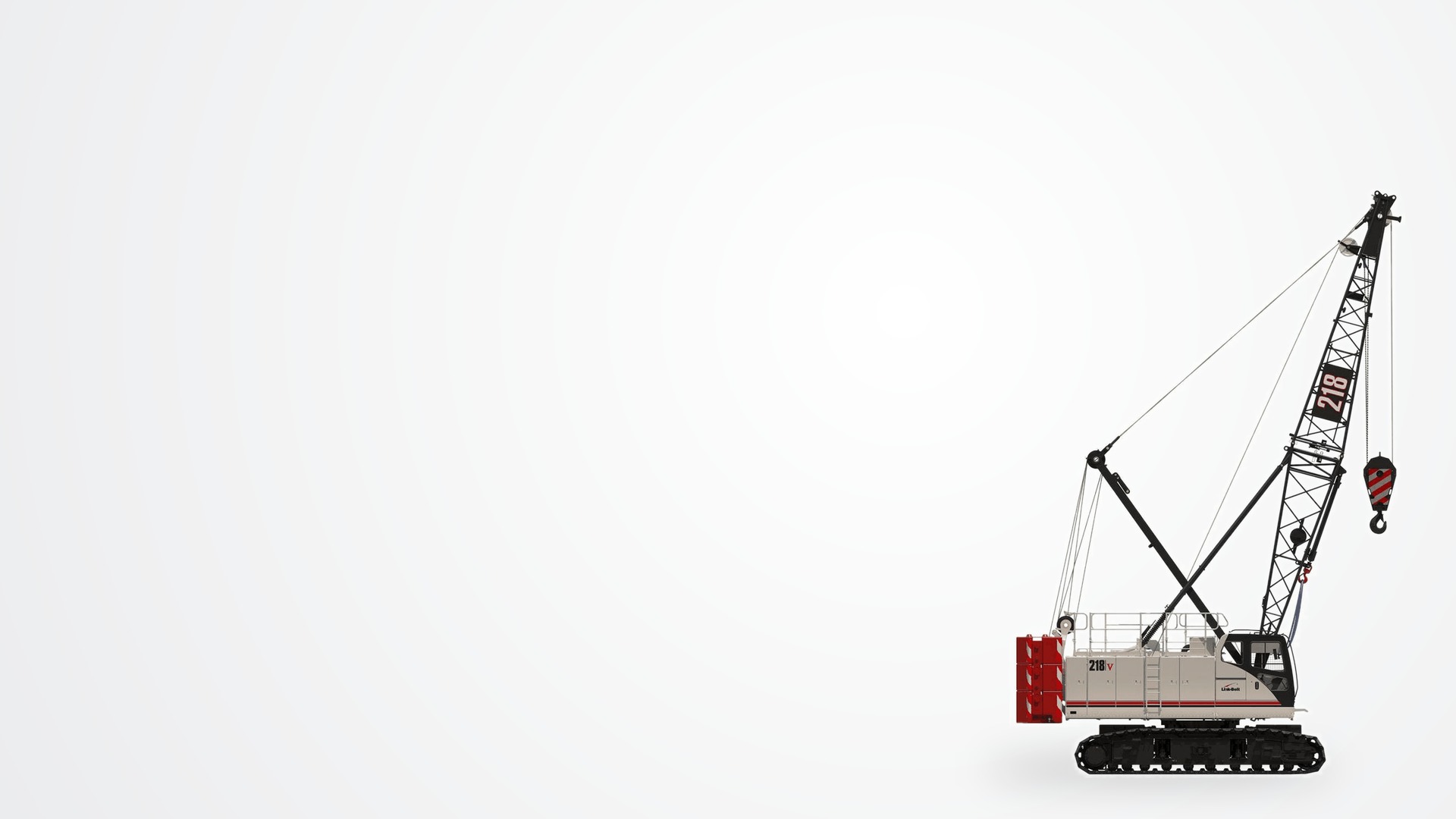

The 218|V is a 110-ton lattice crawler crane built around a two-piece 40 ft basic tube boom that extends to 230 ft, reaching a 278 ft 7 in tip height with the 75 ft fixed jib. A four-piece counterweight system lowers itself to the ground on its own removal cylinders, and the side frames hydraulically extend from a 9 ft retracted travel gauge to a 14 ft 2 in working gauge.
A Cummins QSB6.7 engine (280 hp, Tier 4 Final/Stage V) drives the crane through a 12-part boom hoist system and up to four hydraulic winch drums. The rated capacity limiter is a 12-inch touchscreen system that reads out live ground bearing pressure alongside boom angle, radius, and tip height, standard on every 218|V.
40–230 ft tube boom
12 in touchscreen RCL
Live ground bearing pressure
Self-lowering counterweight
Tier 4 Final/Stage V
Why the 218|V
Built for the jobs that don’t need 130 tons.
12-inch touchscreen RCL
Main boom length and angle, jib length and angle, radius, tip height, list and trim, swing angle, and live ground bearing pressure in one display.
40–230 ft tube boom
Two-piece 40 ft basic boom with 10, 20, 30, and 40 ft extensions, plus a 30–75 ft fixed jib for 278 ft 7 in of tip height.
Self-lowering counterweight
Four-piece upper counterweight plus two carbody counterweights, all lowered to the ground on the crane’s own removal cylinders.
Hydraulic side frame extension
Side frames extend from a 9 ft retracted travel gauge to 14 ft 2 in working gauge with a hydraulic cylinder, no crane assist needed.
Cummins QSB6.7
280 hp Tier 4 Final/Stage V diesel with a 122-gallon fuel tank, sized for a full day on the job.
Backed by HOLT
Sold, rented, and serviced by HOLT’s factory-trained technicians across north, northeast, central, and west Texas, and southern New Mexico, with genuine Link-Belt parts.
Specifications
The full technical picture.
Representative specifications for the Link-Belt 218|V. Always refer to the in-cab Crane Rating Manual for allowable lifting capacities.
Lifting & Boom
| Maximum rated capacity | 110 US tons (100 mt) @ 11 ft |
| Main boom (tube) | 40 – 230 ft (12.19 – 70.10 m) |
| Max tip height (main boom) | 233 ft 11 in (71.30 m) |
| Fixed jib | 30 – 75 ft, offsets 5°, 15°, 25° |
| Max combination | 200 ft boom + 75 ft jib |
| Max tip height (fixed jib) | 278 ft 7 in (84.92 m) |
| Maximum boom angle | 80° |
| Max hoist line pull / speed | 44,565 lb / 583 fpm |
Engine & Hydraulics
| Engine | Cummins QSB6.7, 6-cyl diesel |
| Rated power | 280 hp (209 kW) @ 2,000 rpm |
| Peak torque | 950 ft·lb @ 1,500 rpm |
| Emissions | Tier 4 Final / Stage V |
| Fuel tank | 122 gal (460 L) |
| Hydraulic reservoir | 84 gal (318 L) |
| Max swing speed | 2.5 rpm |
Counterweight & Weight
| Counterweight system | Four-piece, self-lowering |
| Total counterweight | 98,230 lb (44,560 kg) |
| Working weight (full config) | 204,470 lb (92,746 kg) |
| Ground bearing pressure | 13.4 psi, full config |
| Main transport load | 99,960 lb w/ tracks |
Crawler & Travel
| Carrier | 8 ft 10 in wide x 11 ft 8 in long |
| Side frame gauge | 9 ft retracted / 14 ft 2 in extended |
| Track shoes | 36 in wide, 53 per side frame |
| Maximum travel speed | 1.1 mph (1.8 km/h) |
| Gradeability | 30% |
⬇
218|V Technical Data
Full specifications & capacity charts (PDF)
⬇
218|V Brochure
Overview & feature highlights (PDF)
Questions, answered
Link-Belt 218|V FAQ
How much can the Link-Belt 218|V lift?
The Link-Belt 218|V has a maximum rated capacity of 110 US tons (100 metric tons) at an 11-foot radius.
What is the maximum tip height of the 218|V?
Maximum tip height is 233 ft 11 in on the main boom alone, and 278 ft 7 in with the 200 ft boom plus 75 ft fixed jib combination.
What engine powers the Link-Belt 218|V?
A Cummins QSB6.7 Tier 4 Final/Stage V six-cylinder diesel producing 280 hp (209 kW) at 2,000 rpm.
How fast does the 218|V travel and climb grades?
Maximum travel speed is 1.1 mph (1.8 km/h) on the crawlers, and the machine is designed to 30 percent gradeability.
Where does the 218|V fit in the lattice crawler line?
At 110 US tons, the 218|V sits above the 80-ton 138 HSL and below the 228 HSL, 238 HSL, 248 HSL, 248|V, 298 Series 2, and 348 Series 2.
Can I rent or buy a Link-Belt 218|V from HOLT?
Yes. HOLT Crane & Equipment sells and rents the Link-Belt 218|V across north, northeast, central, and west Texas, and southern New Mexico, backed by factory-trained service and genuine parts. Call 877-275-1520 for availability.
