Link-Belt® · Telescopic Crawler Cranes
Six machines.
Every one on tracks.
From the 55-ton TCC-550 to the 250-ton TCC-2500, the Link-Belt® telescopic crawlers lift at full capacity on soft or confined ground where a wheeled crane can’t. HOLT Crane sells, rents, and services every model across north, northeast, central, and west Texas, and southern New Mexico.
Overview
Full capacity, no yard mats required.
A telescopic crawler crane pairs a smooth, hydraulically extending round boom with a crawler undercarriage instead of wheels. That wide track footprint distributes the crane’s weight, so it can travel and lift at soft, wet, or load-sensitive sites that would bog down a wheeled crane or demand a full yard mat.
Because the crane already sits on its lifting base, there is often no separate outrigger setup. Simply position the tracks, extend the side frames if the job calls for it, and pick.
Every Link-Belt® TCC model in this line runs a Cummins engine and the Link-Belt® Pulse operating system, so the choice between models comes down to capacity, reach, and the job site ground.
The Lineup
Powerful cranes for tough job site conditions.
Tap a card for the full spec sheet. We are here to help you find the crane your project needs.
TCC-2500
The flagship of the line, with a seven-section boom and 9-piece counterweight.

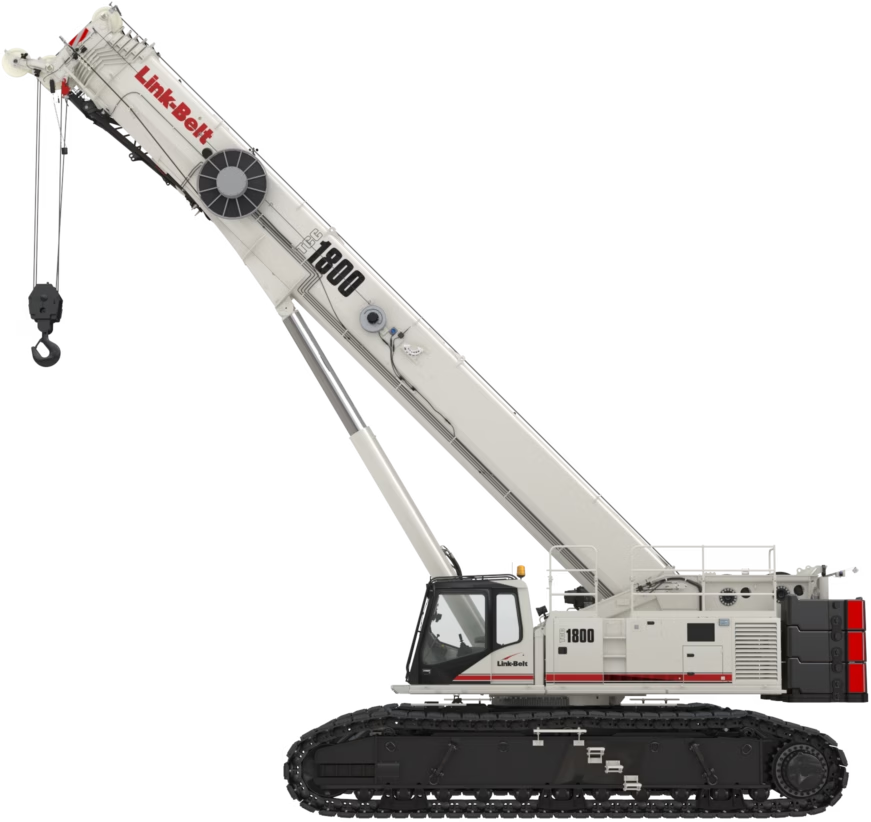

TCC-1800
The newest model in the line, with remote counterweight removal and V-CALC.

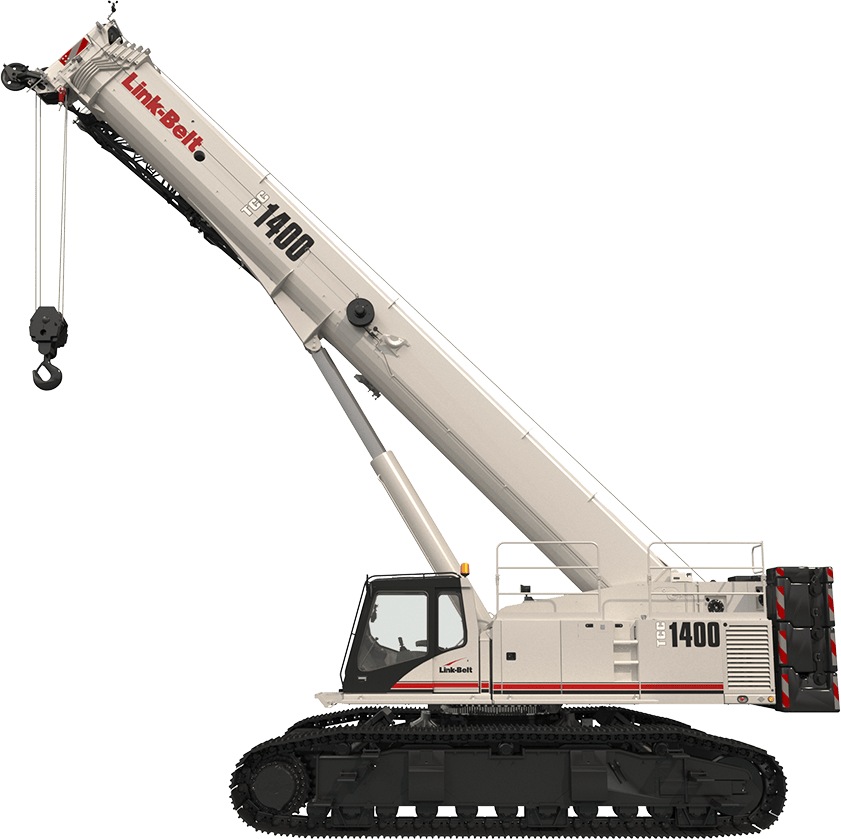

TCC-1400
A six-section boom and three-piece bi-fold fly reaching 257 ft 7 in.

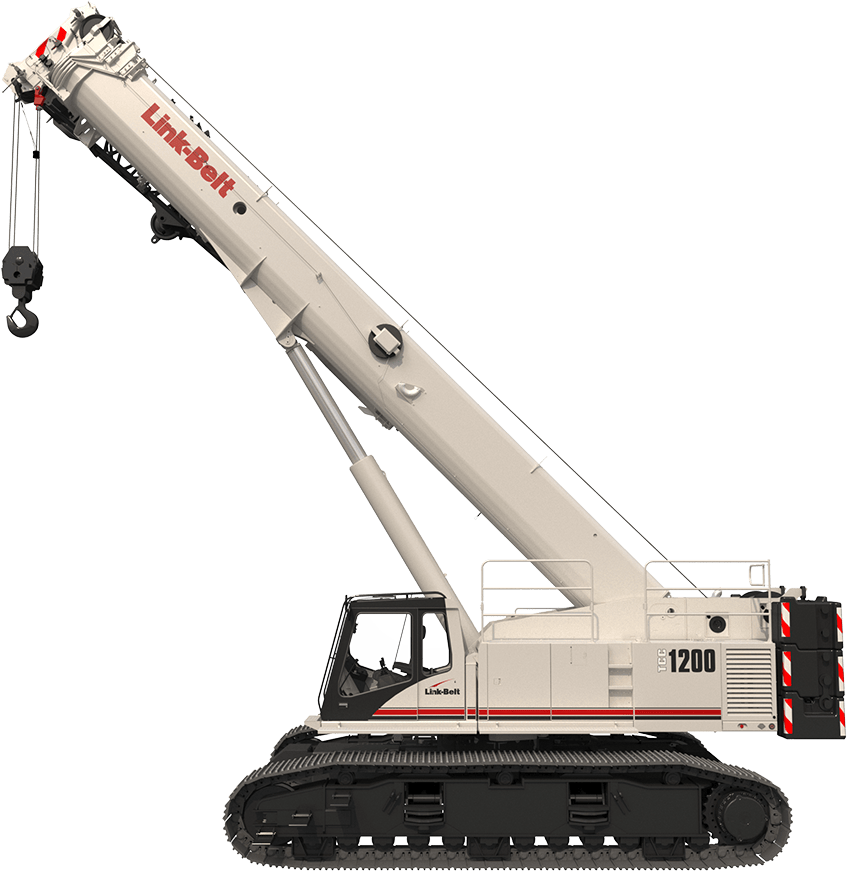

TCC-1200
Five-section boom with three fly options up to a 211 ft tip height.

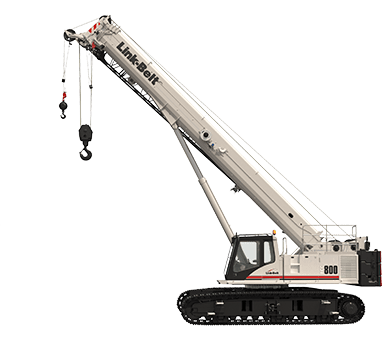

TCC-800
SmartFly attachment, V-CALC undercarriage capacities, and Pulse 2.0.

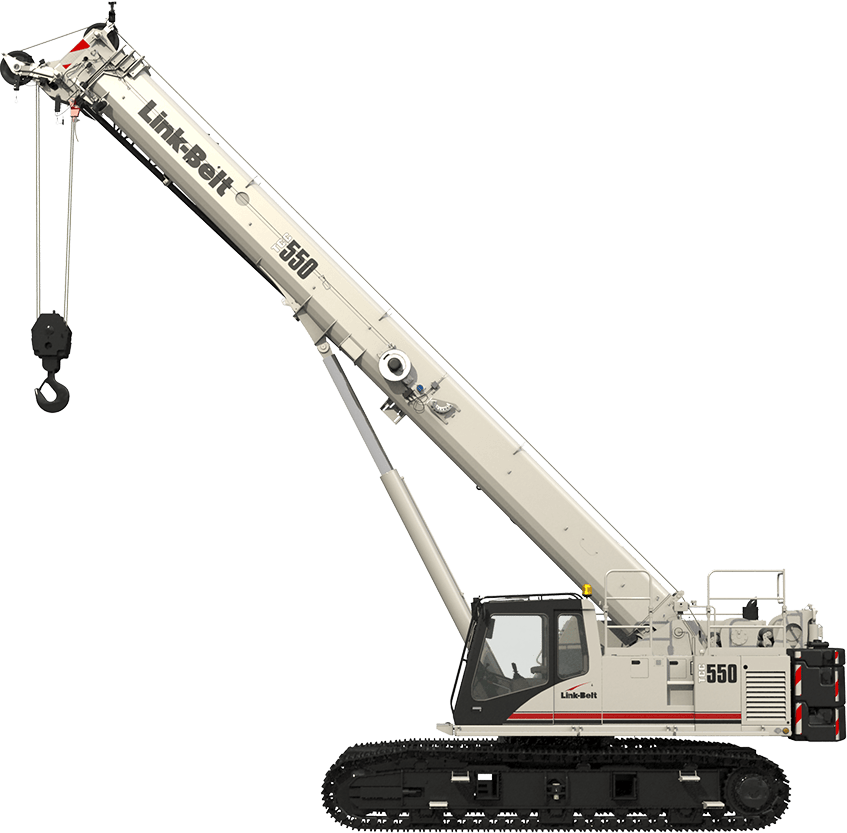

TCC-550
The compact entry point to the line, sized for tight sites and soft ground.
Why Telescopic Crawler
Where this class of crane earns its keep.
Low ground bearing pressure
A wide track footprint spreads the crane’s weight out, letting it work on soft, wet, or load-sensitive ground that would need mats for a wheeled crane.
Travels and lifts on the same base
No separate outrigger setup on many jobs: position the tracks, extend the side frames if needed, and pick.
CALC / V-CALC undercarriage capacities
Selectable extended, intermediate, or retracted side frame positions with live on-screen working radii, on the models that carry it.
Confined and industrial sites
A smaller footprint and tighter tail swing than a comparable lattice crawler make these machines a fit for plant and yard work.
Greaseless boom sections
Teflon-lined wear pads on most models cut daily lubrication points on the telescoping boom itself.
Backed by HOLT Crane
Every model sold and rented by HOLT Crane is serviced by factory-trained technicians with genuine Link-Belt® parts.

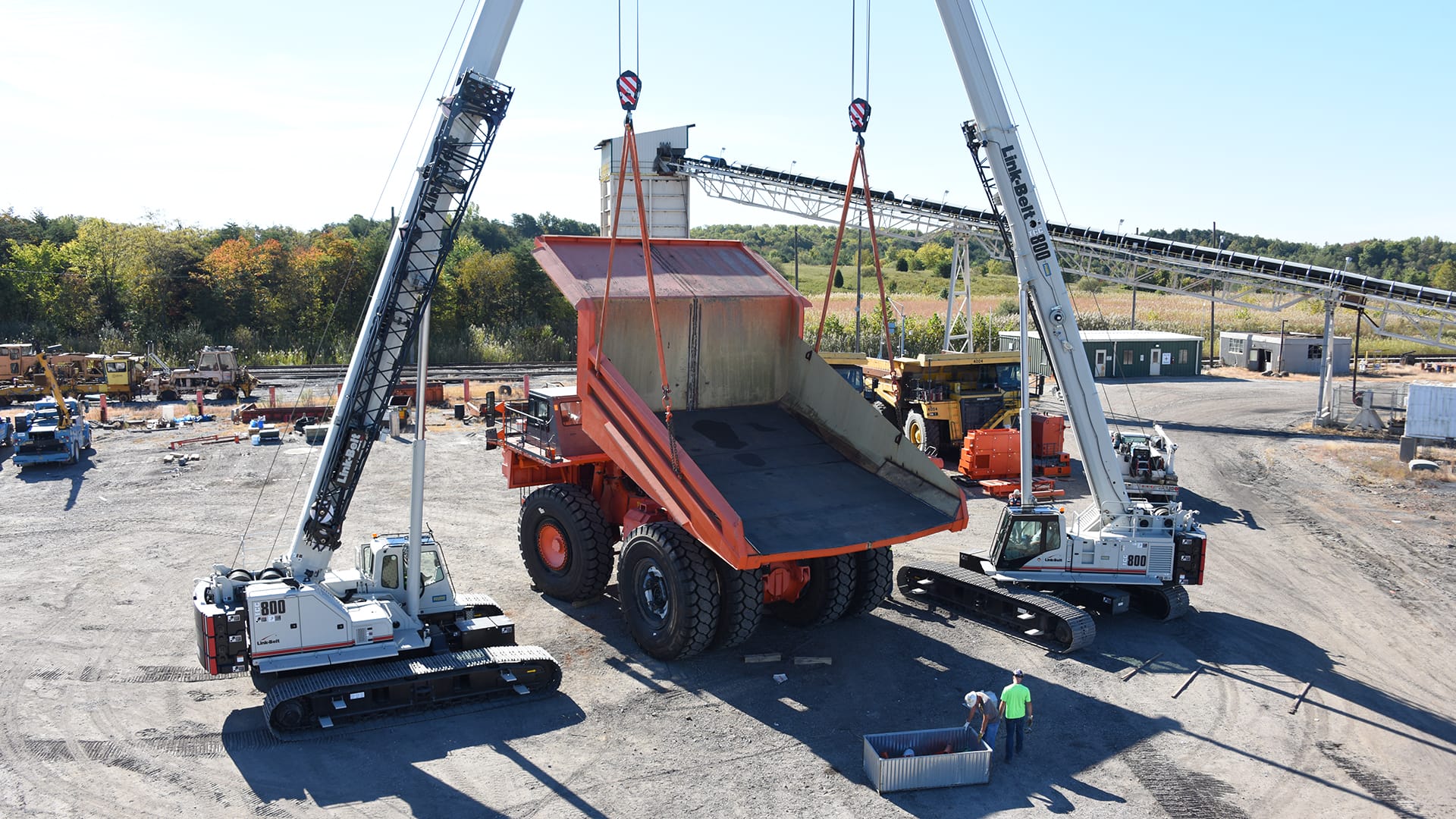

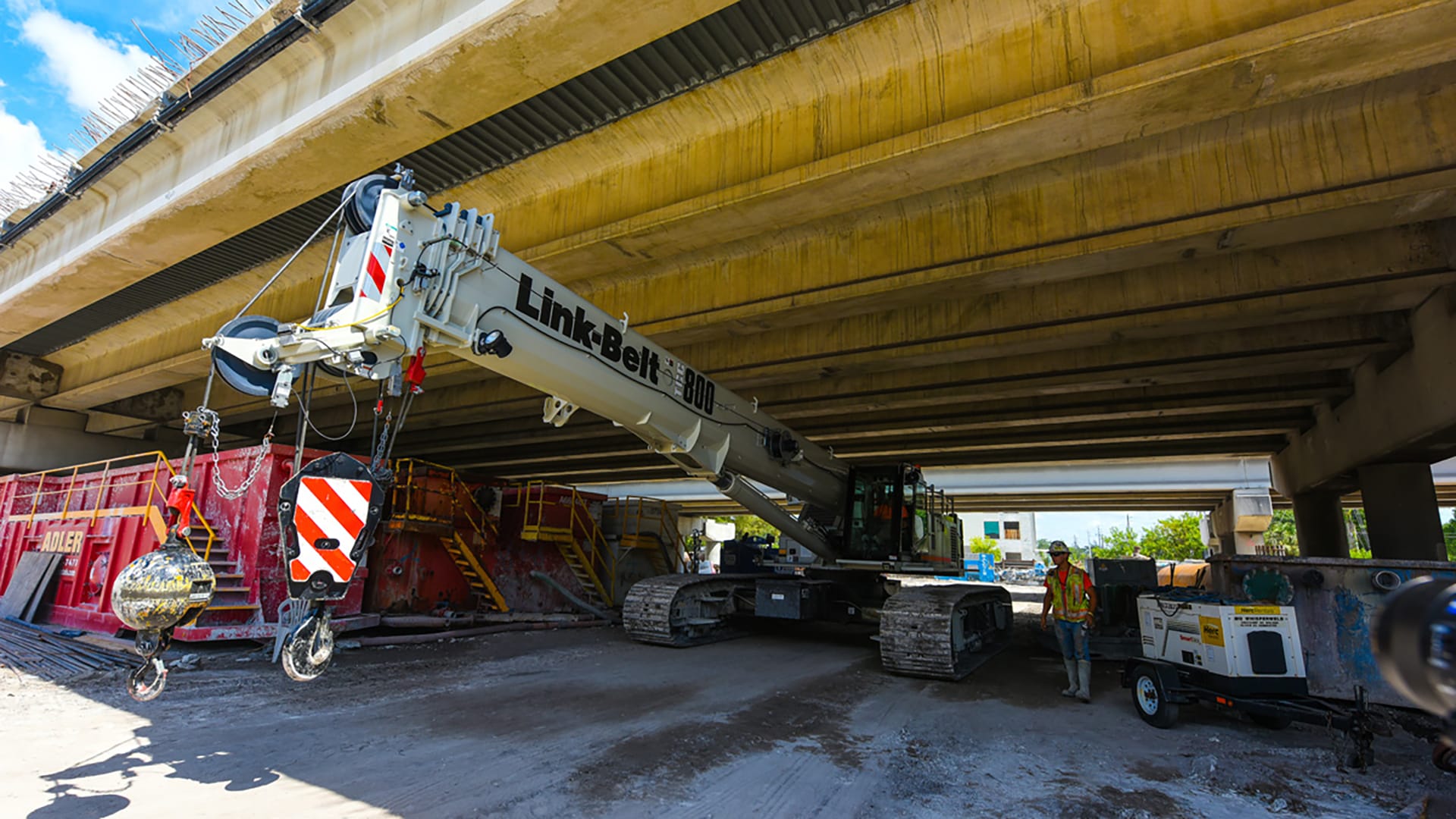

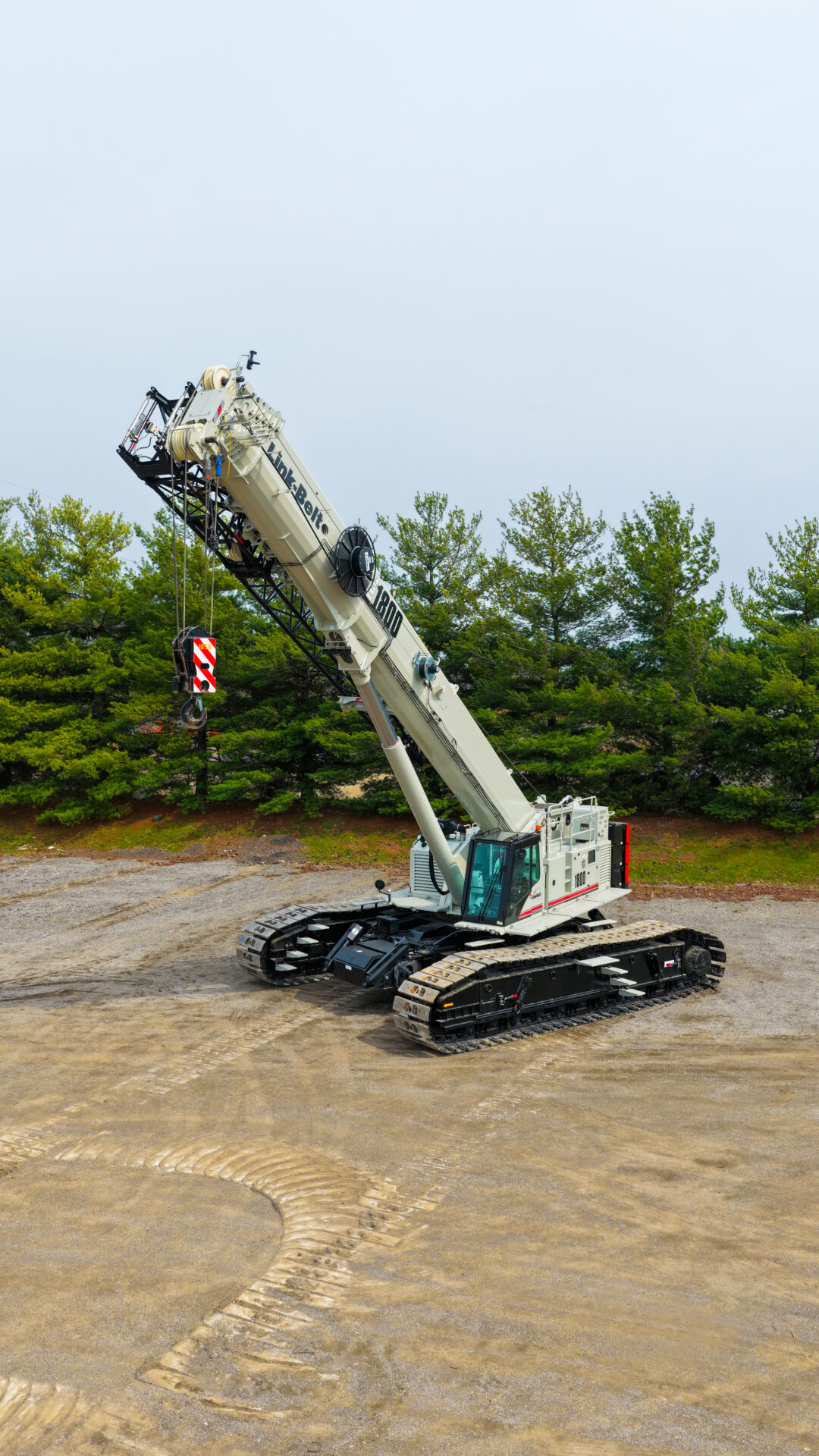

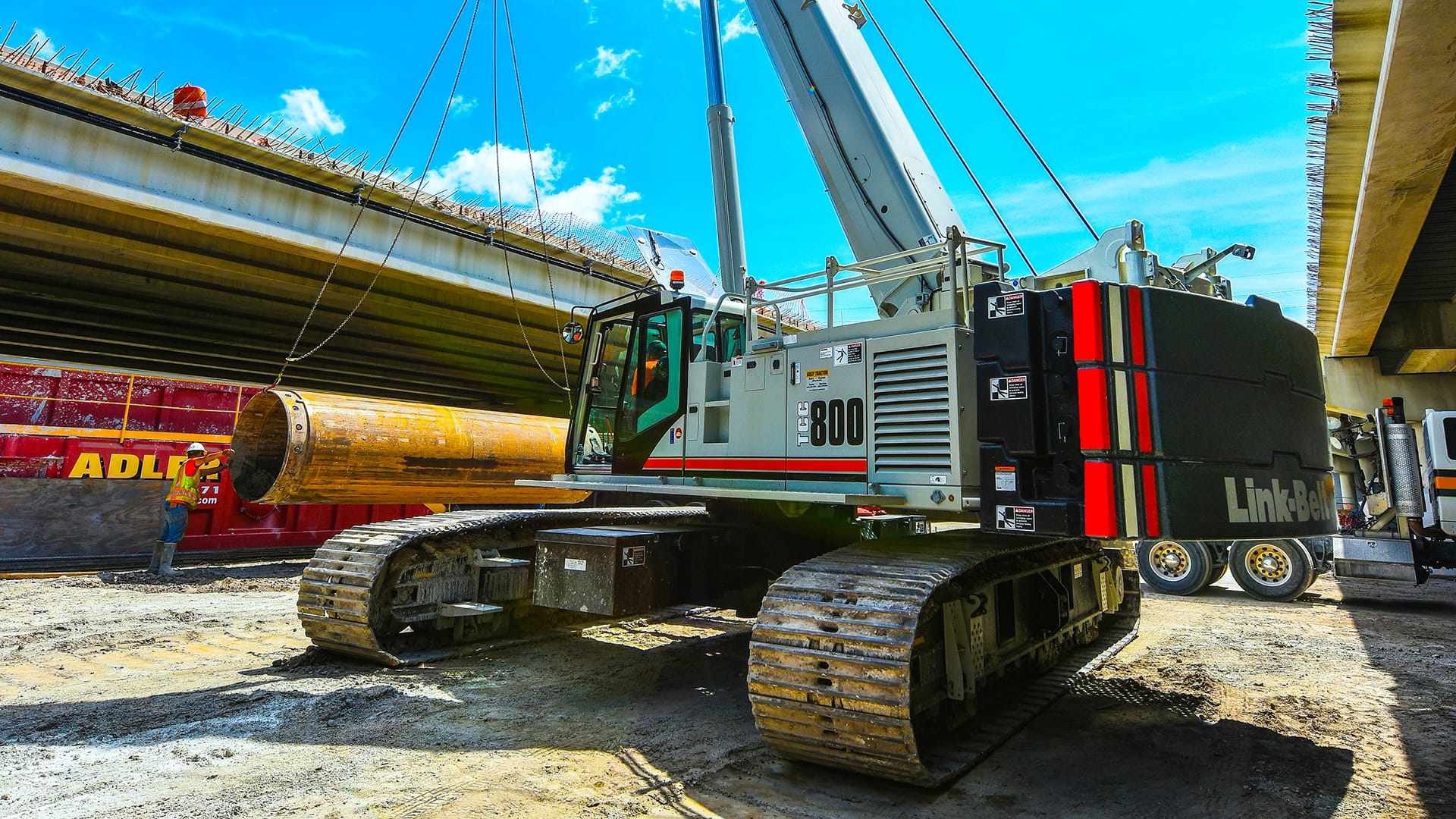

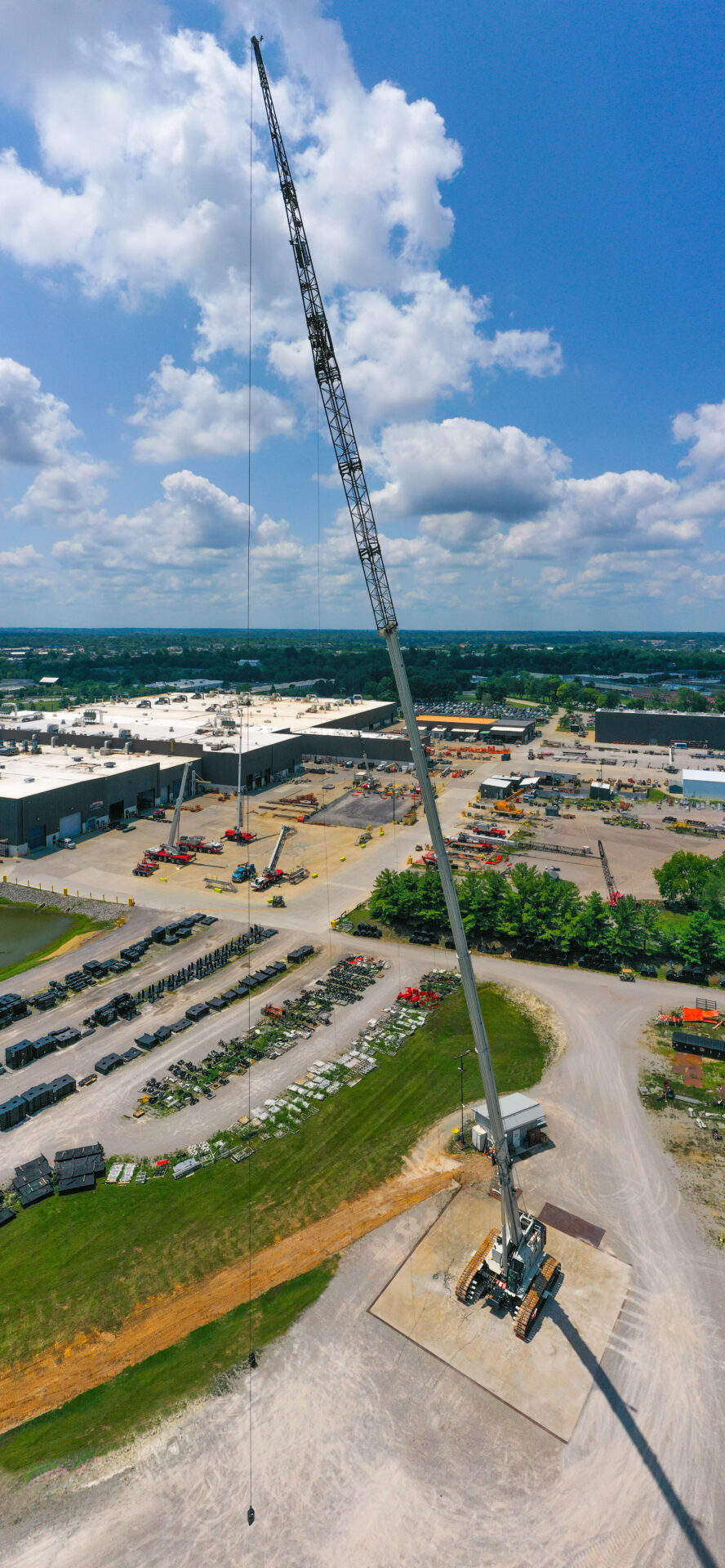

On the Job
The TCC line at work.
Questions, answered
Telescopic Crawler Crane FAQ
What is a telescopic crawler crane?
A crane that combines a smooth, round telescoping boom with a crawler (track) undercarriage instead of wheels or outriggers. That pairing lets it lift at full rated capacity while traveling on soft, uneven, or load-sensitive ground where a wheeled crane would need mats or would not fit.
What is the difference between a telescopic crawler and a lattice crawler crane?
A telescopic crawler crane uses a smooth, hydraulically extending round boom, similar to a rough terrain or truck crane’s boom, but mounted on tracks. A lattice crawler crane uses a trussed, cross-braced boom built up from bolted or pinned sections. Telescopic crawlers set up and travel faster; lattice crawlers typically reach greater heights and capacities at long range.
What size telescopic crawler crane do I need?
It depends on your maximum load, radius, ground conditions, and required reach. Link-Belt’s current line runs from the TCC-550 (55 US tons) up to the TCC-2500 (250 US tons), with tip heights from around 172 ft to over 300 ft depending on model and fly configuration. HOLT can help match a load chart to the right model.
Why choose a telescopic crawler crane over a rough terrain or truck crane?
Telescopic crawler cranes distribute their weight over a wide track footprint, producing low ground bearing pressure that lets them work on soft, wet, or load-sensitive ground without mats. Because the crane travels and lifts on the same undercarriage, there is no separate outrigger setup on many jobs, which is valuable on confined industrial and civil sites.
Does HOLT sell and service the whole Link-Belt telescopic crawler line?
Yes. HOLT Crane & Equipment sells, rents, and services the Link-Belt telescopic crawler crane line across north, northeast, central, and west Texas, and southern New Mexico, backed by factory-trained technicians and genuine parts. Call 877-275-1520 to talk through your project.
Not sure which model fits the job?
Tell us the load, the radius, and the ground you’re working on. We’ll match the right telescopic crawler crane, for sale or rental.
