Overview
The entry point into the current lattice line.

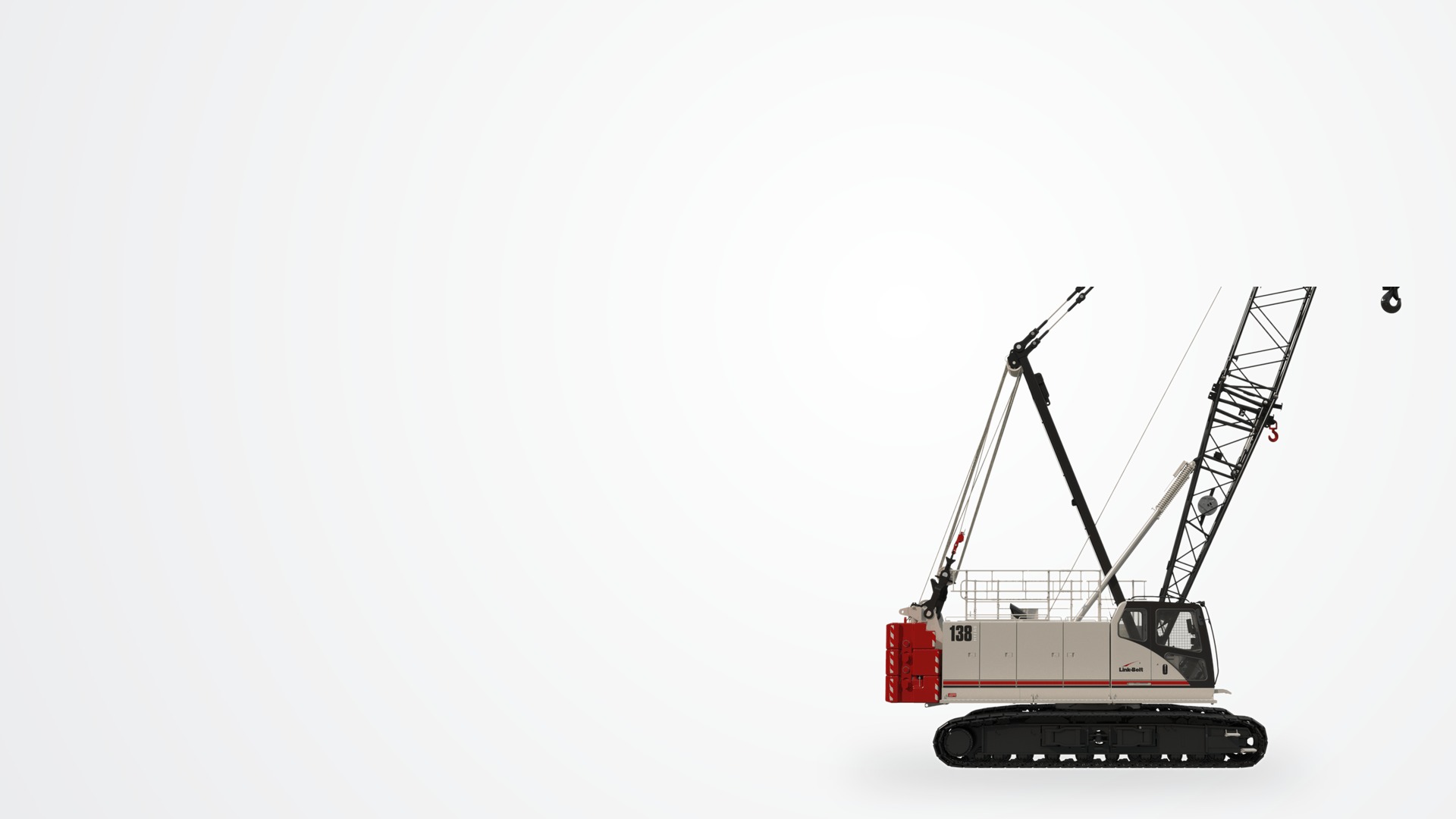

The 138 HSL is the smallest and most maneuverable model in Link-Belt’s current US and Canada lattice crawler lineup: an 80-ton crane that runs either a 40 to 200 ft tube boom or a 40 to 150 ft angle boom on the same carrier. With the 30 to 60 ft fixed jib, the tube boom configuration reaches a 242 ft tip height. A three-piece counterweight system lowers itself to the ground using the crane’s own gantry.
A Cummins QSB6.7 (270 hp, Tier 4 Final) drives the crane, and swing speed tops out at 4.7 rpm, the fastest in the current lattice crawler family. Travel runs at two selectable speeds, 1.1 mph in high and 0.7 mph in low, both at 30 percent gradeability.
Tube or angle boom
40–200 ft boom
4.7 rpm swing
Gantry-lowered counterweight
Tier 4 Final
Why the 138 HSL
Built for the jobs that don’t need 110 tons.
Tube or angle boom
Run a 40–200 ft tube boom for maximum reach or a 40–150 ft angle boom on the same carrier.
4.7 rpm swing speed
The fastest swing speed in Link-Belt’s current lattice crawler line, for quicker cycle times on smaller picks.
Gantry-lowered counterweight
Three-piece, 52,320 lb counterweight system lowered to the ground using the crane’s own gantry, no separate crane needed.
Two-speed travel
1.1 mph high speed or 0.7 mph low speed on the crawlers, both at 30 percent gradeability.
Rearview camera
Standard visibility aid for a compact carrier working in tighter job site quarters.
Backed by HOLT
Sold, rented, and serviced by HOLT’s factory-trained technicians across north, northeast, central, and west Texas, and southern New Mexico, with genuine Link-Belt parts.
Specifications
The full technical picture.
Representative specifications for the Link-Belt 138 HSL. Always refer to the in-cab Crane Rating Manual for allowable lifting capacities.
Lifting & Boom
| Maximum rated capacity | 80 US tons @ 12 ft |
| Main boom (tube) | 40 – 200 ft (12.19 – 60.96 m) |
| Main boom (angle) | 40 – 150 ft |
| Fixed jib | 30 – 60 ft, offsets 5°, 15°, 25° |
| Max combination (tube) | 180 ft boom + 60 ft jib, 242 ft tip |
| Max combination (angle) | 150 ft boom + 60 ft jib, 213.7 ft tip |
| Maximum boom angle | 80° |
| Max hoist line pull / speed | 31,182 lb / 450 fpm |
Engine
| Engine | Cummins QSB6.7, 6-cyl diesel |
| Rated power | 270 hp (210 kW) |
| Peak torque | 730 ft·lb @ 1,500 rpm |
| Emissions | Tier 4 Final |
| Fuel tank | 122 gal (460 L) |
| Max swing speed | 4.7 rpm |
Counterweight & Weight
| Counterweight system | Three-piece, gantry-lowered |
| Total counterweight | 52,320 lb (23,732 kg) |
| Working weight (full config) | 145,403 lb (65,954 kg) |
| Ground bearing pressure | 9.26 psi, full config |
| Main transport load | 88,121 lb w/ tracks |
Crawler & Travel
| Carrier | 9 ft 2.3 in overall width |
| Side frame gauge | 8 ft 11 in retracted / 14 ft extended |
| Track shoes | 36 in wide |
| Maximum travel speed | 1.1 mph high / 0.7 mph low |
| Gradeability | 30% |
⬇
138 HSL Technical Data
Full specifications & capacity charts (PDF)
⬇
138 HSL Brochure
Overview & feature highlights (PDF)
Questions, answered
Link-Belt 138 HSL FAQ
How much can the Link-Belt 138 HSL lift?
The Link-Belt 138 HSL has a maximum rated capacity of 80 US tons at a 12-foot radius.
What is the maximum tip height of the 138 HSL?
Maximum tip height is 242 ft using the 180 ft tube boom plus 60 ft fixed jib combination, or 213.7 ft using the angle boom plus fixed jib combination.
What engine powers the Link-Belt 138 HSL?
A Cummins QSB6.7 Tier 4 Final six-cylinder diesel producing 270 hp (210 kW), with 730 ft-lb of peak torque.
Is the 138 HSL the smallest lattice crawler crane Link-Belt currently builds?
Yes. The 138 HSL is the entry point into Link-Belt’s current US and Canada lattice crawler line at 80 US tons, below the 218|V, 228 HSL, 238 HSL, 248 HSL, 248|V, 298 Series 2, and 348 Series 2.
How fast does the 138 HSL travel and climb grades?
Maximum travel speed is 1.1 mph (1.7 km/h) in high speed and 0.7 mph (1.1 km/h) in low speed, and the machine is designed to 30 percent gradeability.
Can I rent or buy a Link-Belt 138 HSL from HOLT?
Yes. HOLT Crane & Equipment sells and rents the Link-Belt 138 HSL across north, northeast, central, and west Texas, and southern New Mexico, backed by factory-trained service and genuine parts. Call 877-275-1520 for availability.
