Overview

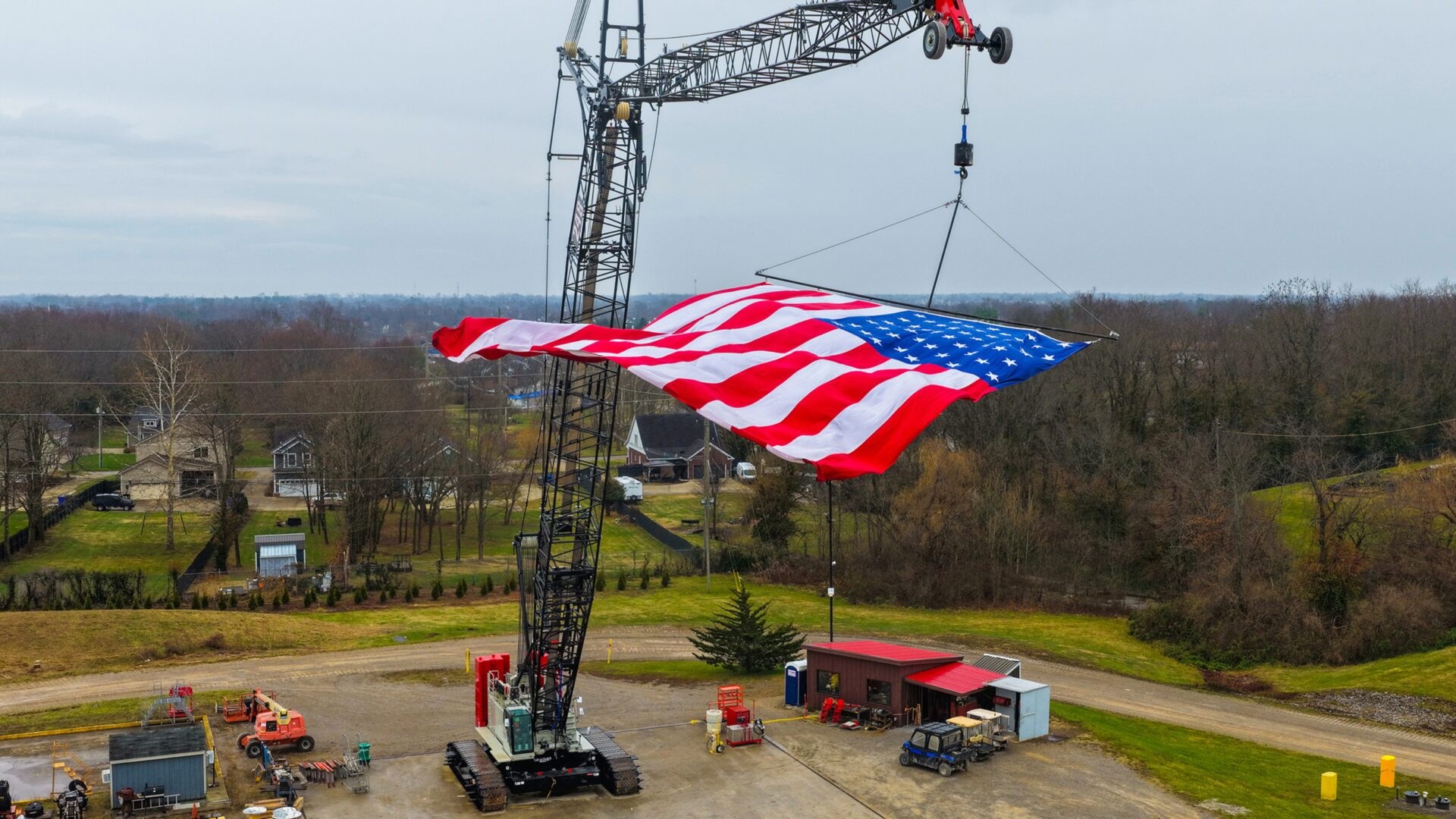

The newest 200-ton crane in Link-Belt’s line.
The 248|V brings a 55 to 275 ft conventional boom and, new to this weight class, an 85 to 185 ft luffing jib for a maximum combination of 155 ft boom plus 185 ft jib. It runs alongside the established 248 HSL rather than replacing it: both are current 200-ton products, and the 248|V is the one built around Link-Belt’s newest control technology.
A new 12-inch HSL-2 touchscreen load moment limiter reads out live ground bearing pressure alongside wind speed and boom geometry, backed by iCraneTrax telematics. A Cummins QSB6.7 (282 hp, Stage V/Tier 4 Final) is HVO fuel compatible, and the luffing boom works from 30° up to 88°.
Luffing jib option
12 in HSL-2 touchscreen
iCraneTrax telematics
HVO fuel compatible
Stage V/Tier 4 Final
Why the 248|V
200 tons, next-generation controls.
Luffing jib option
85–185 ft luffing jib for a steep working range in tight quarters, not offered on the 248 HSL.
12 in HSL-2 touchscreen
New load moment limiter with live ground bearing pressure, wind speed monitoring, and real-time geometrical data.
iCraneTrax telematics
Equipped standard for fleet location, usage, and maintenance monitoring.
HVO fuel compatible
Runs on hydrotreated vegetable oil as well as standard diesel, without engine modification.
55–275 ft conventional boom
Reaches an 81° maximum boom angle conventional, or 88° with the luffing attachment.
Backed by HOLT
Sold, rented, and serviced by HOLT’s factory-trained technicians across north, northeast, central, and west Texas, and southern New Mexico, with genuine Link-Belt parts.
Specifications
The full technical picture.
Representative specifications for the Link-Belt 248|V, drawn from Link-Belt’s published preliminary technical data. Always refer to the in-cab Crane Rating Manual for allowable lifting capacities.
Lifting & Boom
| Maximum rated capacity | 200 US tons (181 mt) |
| Conventional boom | 55 – 275 ft (16.8 – 83.8 m) |
| Fixed jib | 30 – 100 ft, offsets 5°, 15°, 25° |
| Max combination (fixed jib) | 245 ft boom + 100 ft jib |
| Luffing jib | 85 – 185 ft (25.9 – 56.4 m) |
| Max combination (luffer) | 155 ft boom + 185 ft jib |
| Maximum boom angle | 81° conventional / 88° luffing |
| Max hoist line pull / speed | 46,925 lb / 533 fpm |
Engine
| Engine | Cummins QSB6.7, 6-cyl diesel |
| Rated power | 282 hp (210 kW) @ 2,000 rpm |
| Peak torque | 950 ft·lb @ 1,500 rpm |
| Emissions | Stage V / Tier 4 Final |
| Fuel tank | 118 gal (450 L) + 22.4 gal DEF |
| Max swing speed | 1.7 rpm |
Weight & Travel
| Working weight (full config) | 359,286 lb (162,969 kg) |
| Ground bearing pressure | 14.09 psi |
| Main transport load | 90,632 lb w/ base section |
| Maximum travel speed | 1.2 mph (1.9 km/h) |
| Gradeability | 30% |
Control System
| Rated capacity limiter | 12 in HSL-2 touchscreen |
| Telematics | iCraneTrax, standard |
| Fuel compatibility | Diesel and HVO |
| Ground bearing monitoring | Live, on display |
⬇
248|V Technical Data
Full specifications & capacity charts (PDF)
↗
248|V Official Product Page
Full details at linkbelt.com
Questions, answered
Link-Belt 248|V FAQ
How much can the Link-Belt 248|V lift?
The Link-Belt 248|V has a maximum rated capacity of 200 US tons (181 metric tons).
Does the 248|V offer a luffing jib?
Yes. The 248|V offers an 85 to 185 ft luffing jib in addition to the 30 to 100 ft fixed jib option, with a maximum luffer combination of 155 ft boom plus 185 ft jib.
What is new on the 248|V compared to the 248 HSL?
The 248|V adds a new 12-inch HSL-2 touchscreen load moment limiter, iCraneTrax telematics with live ground bearing pressure monitoring, HVO fuel compatibility, and a luffing jib option. Both remain current 200-ton products; the 248|V is not a replacement for the 248 HSL.
What engine powers the Link-Belt 248|V?
A Cummins QSB6.7 Stage V/Tier 4 Final six-cylinder diesel producing 282 hp (210 kW) at 2,000 rpm, with 950 ft-lb of peak torque.
How fast does the 248|V travel and climb grades?
Maximum travel speed is 1.2 mph (1.9 km/h), and the machine is designed to 30 percent gradeability.
Can I rent or buy a Link-Belt 248|V from HOLT?
Yes. HOLT Crane & Equipment sells and rents the Link-Belt 248|V across north, northeast, central, and west Texas, and southern New Mexico, backed by factory-trained service and genuine parts. Call 877-275-1520 for availability.
