Overview
Tube boom, luffing boom, or fixed jib, one carrier.

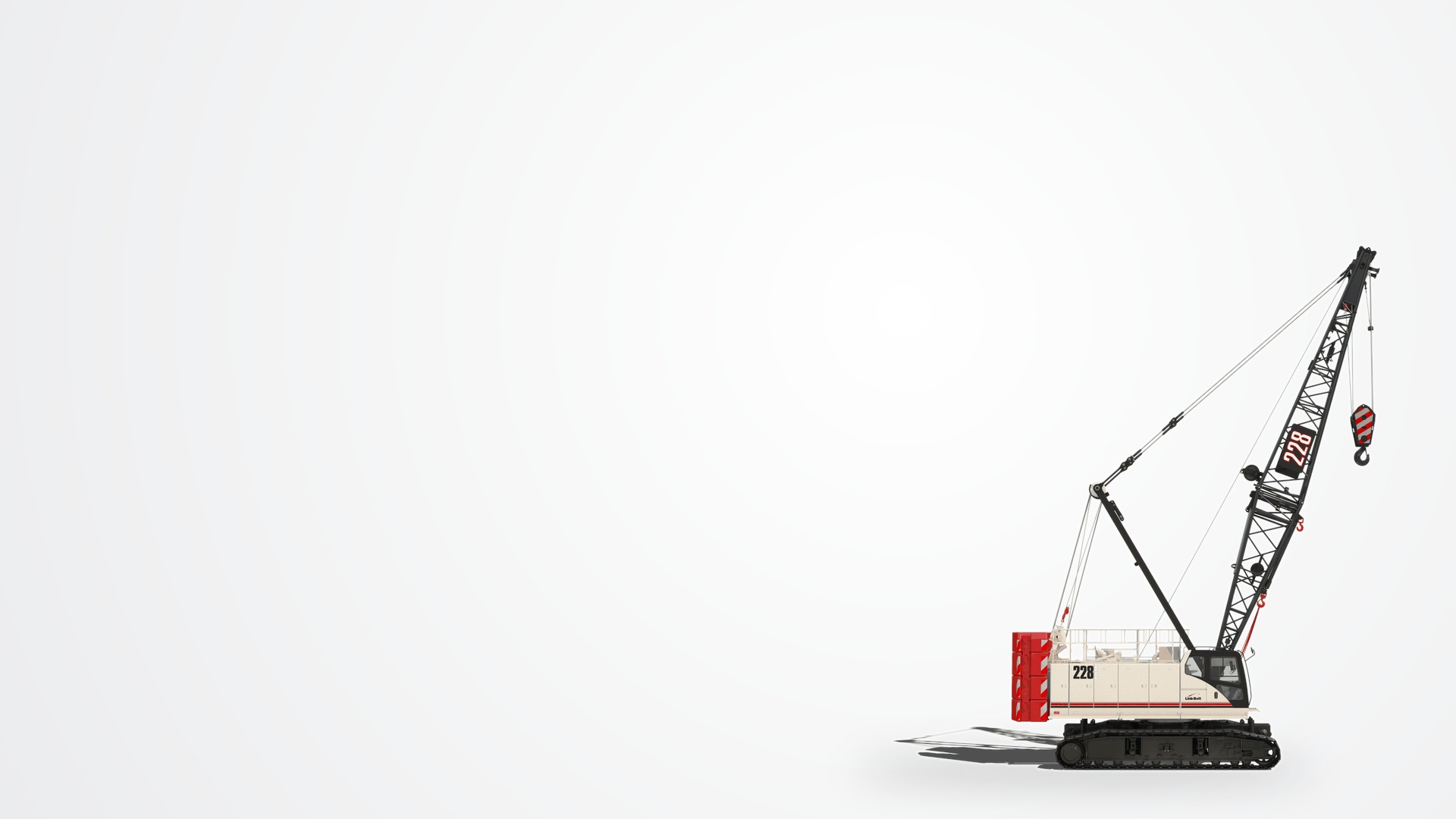

The 228 HSL steps up to 130 tons with the same attachment flexibility that defines Link-Belt’s HSL line: run a 45 to 235 ft tube boom, swap to a 45 to 155 ft luffing boom, or add the 30 to 75 ft fixed jib for a 284 ft tip height. A nine-piece counterweight system, two car body slabs plus seven upper pieces, lowers itself to the ground with a quick-removal mechanism.
Power comes from a Cummins QSB6.7 (270 hp, Tier 4 Final), and the HSL rated capacity limiter reads out boom length, boom angle, jib length and angle, load radius, and tip height on the operator’s display. Maximum crawler travel speed is 1.3 mph, the quickest in the current HSL/V lineup.
Tube or luffing boom
45–235 ft boom
Nine-piece counterweight
1.3 mph travel
Tier 4 Final
Why the 228 HSL
One carrier, three boom configurations.
Tube or luffing boom
Run a 45–235 ft tube boom for general work or swap to a 45–155 ft luffing boom when the job calls for a steeper working range.
Nine-piece counterweight
Two car body counterweights plus seven upper pieces, 106,150 lb total, with a quick-removal mechanism for faster transport turnaround.
1.3 mph travel speed
The fastest crawler travel speed in Link-Belt’s current HSL/V lattice crawler line, with 30 percent gradeability.
HSL rated capacity limiter
Boom hoist load cell system reads out boom length and angle, jib length and angle, radius, and tip height on the operator’s display.
Cummins QSB6.7
270 hp Tier 4 Final diesel with a 122-gallon fuel tank for full-shift jobsite runtime.
Backed by HOLT
Sold, rented, and serviced by HOLT’s factory-trained technicians across north, northeast, central, and west Texas, and southern New Mexico, with genuine Link-Belt parts.
Specifications
The full technical picture.
Representative specifications for the Link-Belt 228 HSL. Always refer to the in-cab Crane Rating Manual for allowable lifting capacities.
Lifting & Boom
| Maximum rated capacity | 130 US tons @ 12 ft |
| Main boom (tube) | 45 – 235 ft |
| Luffing boom (angle) | 45 – 155 ft |
| Fixed jib | 30 – 75 ft, offsets 5°, 15°, 25° |
| Max combination | 205 ft boom + 75 ft jib |
| Max tip height (fixed jib) | 284 ft |
| Maximum boom angle | 80° |
| Max hoist line pull / speed | 44,565 lb / 536 fpm |
Engine & Hydraulics
| Engine | Cummins QSB6.7, 6-cyl diesel |
| Rated power | 270 hp (201 kW) |
| Peak torque | 730 ft·lb @ 1,500 rpm |
| Emissions | Tier 4 Final |
| Fuel tank | 122 gal (460 L) |
| Max swing speed | 2.5 rpm |
Counterweight & Weight
| Counterweight system | Nine-piece, self-lowering |
| Total counterweight | 106,150 lb (48,149 kg) |
| Working weight (full config) | 235,041 lb (106,614 kg) |
| Ground bearing pressure | 11.80 psi, full config |
| Main transport load | 119,541 lb w/ tracks |
Crawler & Travel
| Maximum travel speed | 1.3 mph (2.15 km/h) |
| Gradeability | 30% |
⬇
228 HSL Technical Data
Full specifications & capacity charts (PDF)
⬇
228 HSL Brochure
Overview & feature highlights (PDF)
Questions, answered
Link-Belt 228 HSL FAQ
How much can the Link-Belt 228 HSL lift?
The Link-Belt 228 HSL has a maximum rated capacity of 130 US tons at a 12-foot radius.
What is the maximum tip height of the 228 HSL?
Maximum tip height is 284 ft with the 205 ft boom plus 75 ft fixed jib combination.
Does the 228 HSL offer a luffing jib option?
The 228 HSL’s boom attachment can run as a 45–235 ft tube boom or a 45–155 ft luffing boom, in addition to the fixed jib option.
What engine powers the Link-Belt 228 HSL?
A Cummins QSB6.7 Tier 4 Final six-cylinder diesel producing 270 hp (201 kW), with 730 ft-lb of peak torque.
How fast does the 228 HSL travel and climb grades?
Maximum travel speed is 1.3 mph (2.15 km/h), the fastest crawler travel speed in Link-Belt’s current lattice crawler line, and the machine is designed to 30 percent gradeability.
Can I rent or buy a Link-Belt 228 HSL from HOLT?
Yes. HOLT Crane & Equipment sells and rents the Link-Belt 228 HSL across north, northeast, central, and west Texas, and southern New Mexico, backed by factory-trained service and genuine parts. Call 877-275-1520 for availability.
