Overview
110 tons of reach on one all-wheel chassis.

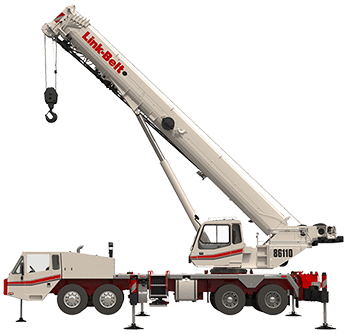

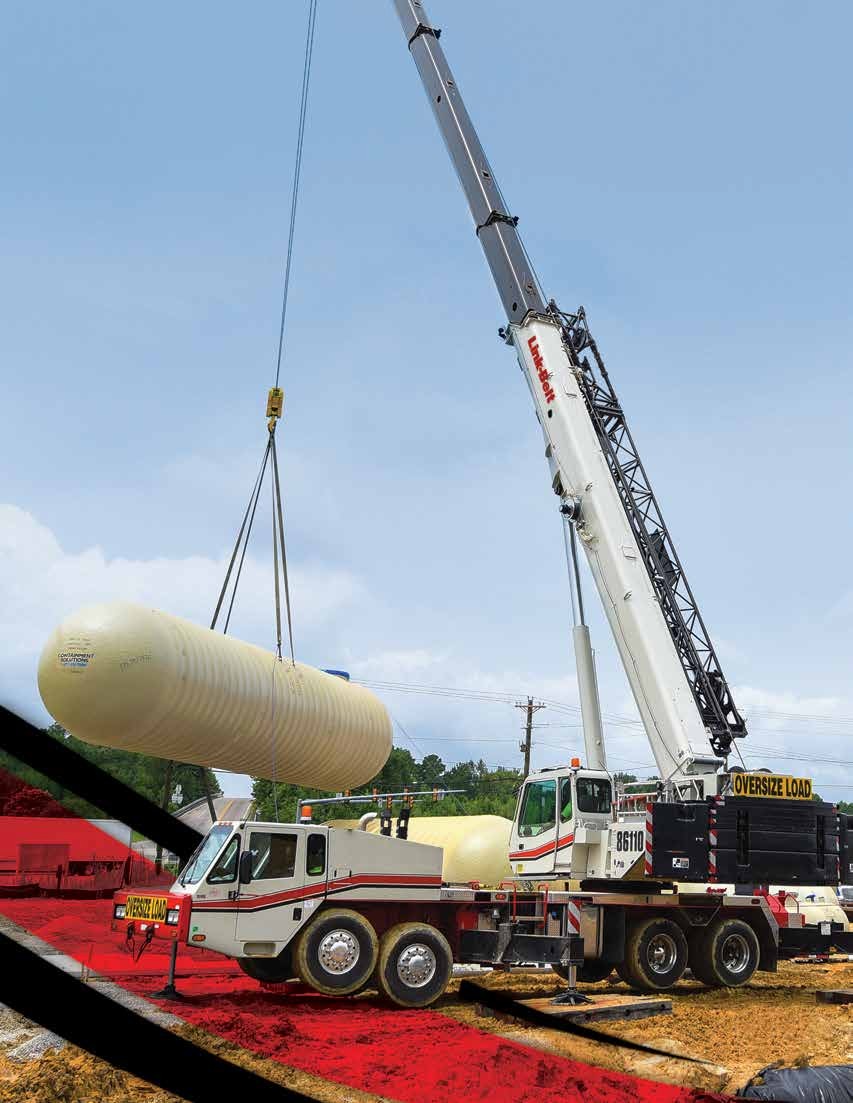

The HTT-86110 is the reach leader of Link-Belt’s truck terrain line: a single-cab, all-wheel-drive 8×4 chassis that drives itself to the jobsite at up to 56 mph, then sets up on CALC outriggers to lift at full rated capacity. Its six-section boom telescopes to 164.1 ft, and with the three-piece lattice fly and both lattice extensions it reaches a 262 ft tip height.
Every function runs through Link-Belt Pulse, with an integrated rated capacity limiter, telematics, and real-time load and radius readout. A Cummins X12 (450 hp) drives both the road and the crane functions through a ZF TraXon automated manual transmission; a Cummins QSX15 (480 hp) Tier 3/Stage IIIA option is available where accepted.
Six-section boom
CALC outriggers
Pulse
8×4 all-wheel chassis
56 mph travel
Why the HTT-86110
The deepest reach in the truck terrain line.
Link-Belt Pulse
Integrated RCL, anti-two-block, real-time load and radius readout, and operator-settable alarms.
CALC outriggers
Confined-area lifting with selectable full, intermediate, or retracted outrigger positions on both sides.
Single-cab, all-wheel steer
One cab for driving and lifting on an 8×4 chassis gives it a tighter jobsite turning radius than a telescopic truck crane.
Six-section boom
38.3 to 164.1 ft with six extend modes, reaching 262 ft with the three-piece fly and both lattice extensions.
Telematics standard
Cellular location, usage, maintenance, and fault-code monitoring, so your fleet team sees the machine before it calls in.
Cummins X12
450 hp and 1,550 ft·lb of torque, run through a ZF TraXon 12-speed automated manual.
Specifications
The full technical picture.
Representative specifications for the Link-Belt HTT-86110. Always refer to the in-cab Crane Rating Manual for allowable lifting capacities.
Lifting & Boom
| Maximum rated capacity | 110 US tons (100 mt) @ 7 ft |
| Main boom | 38.3 – 164.1 ft (11.7 – 50.0 m) |
| Boom sections | Six, formed construction |
| Boom extend modes | Six (EM1–EM6) |
| Boom elevation | −3° to 80° |
| Max tip height (main boom) | 173 ft (52.6 m) |
| Max tip height (3-piece fly) | 230 ft (70.2 m) |
| Max tip height (fly + 2 ext.) | 262 ft (79.7 m) |
| Fly | 10 – 35 – 58 ft three-piece, offsettable 0–45° |
| Counterweight | Up to 48,600 lb, configurable |
Engine & Drivetrain
| Engine | Cummins X12, 6-cyl diesel |
| Rated power | 450 hp (336 kW) @ 1,800 rpm |
| Peak torque | 1,550 ft·lb (2,102 N·m) @ 1,200 rpm |
| Emissions | EPA 2017 (Tier 3/Stage IIIA avail.) |
| Transmission | ZF TraXon, 12F / 2R automated manual |
| Drive | 8×4 on/off-highway |
| Max travel speed | 56 mph (91 km/h) |
Carrier & Outriggers
| Carrier width | 8 ft 6 in (2.6 m) |
| Wheelbase | 23 ft 5 in (7.14 m) |
| Steering/drive | Front tandem steered, rear tandem steered/driven |
| Outriggers | Four dual-stage + front bumper, CALC |
| Main jack reaction | 112,000 lb (498.2 kN) |
| Front bumper reaction | 54,000 lb (240.2 kN) |
Tech & Cab
| Operating system | Link-Belt Pulse |
| Cab tilt | Up to 20° |
| Monitoring | Telematics, cellular data logging |
⬇
HTT-86110 Technical Data
Full specifications & capacity charts (PDF)
⬇
HTT-86110 Brochure
Overview & feature highlights (PDF)
Questions, answered
Link-Belt HTT-86110 FAQ
How much can the Link-Belt HTT-86110 lift?
The Link-Belt HTT-86110 has a maximum rated capacity of 110 US tons (100 metric tons) at a 7-foot radius.
What is the maximum tip height of the HTT-86110?
Maximum tip height is 173 ft on the main boom alone, 230 ft with the three-piece lattice fly, and up to 262 ft with the fly plus two 16 ft lattice extensions.
What engine powers the Link-Belt HTT-86110?
A Cummins X12 six-cylinder diesel producing 450 hp (336 kW) at 1,800 rpm in EPA 2017 trim, paired with a ZF TraXon automated manual transmission. A Cummins QSX15 (480 hp, Tier 3/Stage IIIA) is available where accepted.
How fast can the HTT-86110 travel on the highway?
The HTT-86110 is governed to approximately 56 mph in 12th gear, allowing it to drive itself between jobsites at highway speed.
How long is the main boom on the HTT-86110?
The HTT-86110 uses a six-section pin-and-latch boom that extends from 38.3 ft to 164.1 ft, with six operator-selectable extend modes.
What is a truck terrain crane, and how is the HTT-86110 different from a telescopic truck crane?
A truck terrain crane like the HTT-86110 uses one cab for both driving and lifting on an all-wheel-drive, all-wheel-steer chassis, giving it a tighter jobsite turning radius than a telescopic truck crane’s separate carrier-and-upper-cab layout, while still driving itself between jobs on public roads.
Can I rent or buy a Link-Belt HTT-86110 from HOLT?
Yes. HOLT Crane & Equipment sells and rents the Link-Belt HTT-86110 across north, northeast, central, and west Texas, and southern New Mexico, backed by factory-trained service and genuine parts. Call 877-275-1520 for availability.
Put an HTT-86110 on your next lift.
Tell us the job and we’ll match the machine, for sale or rental, with the parts and service to keep it lifting.
