Overview
Drives to the job, lifts when it gets there.

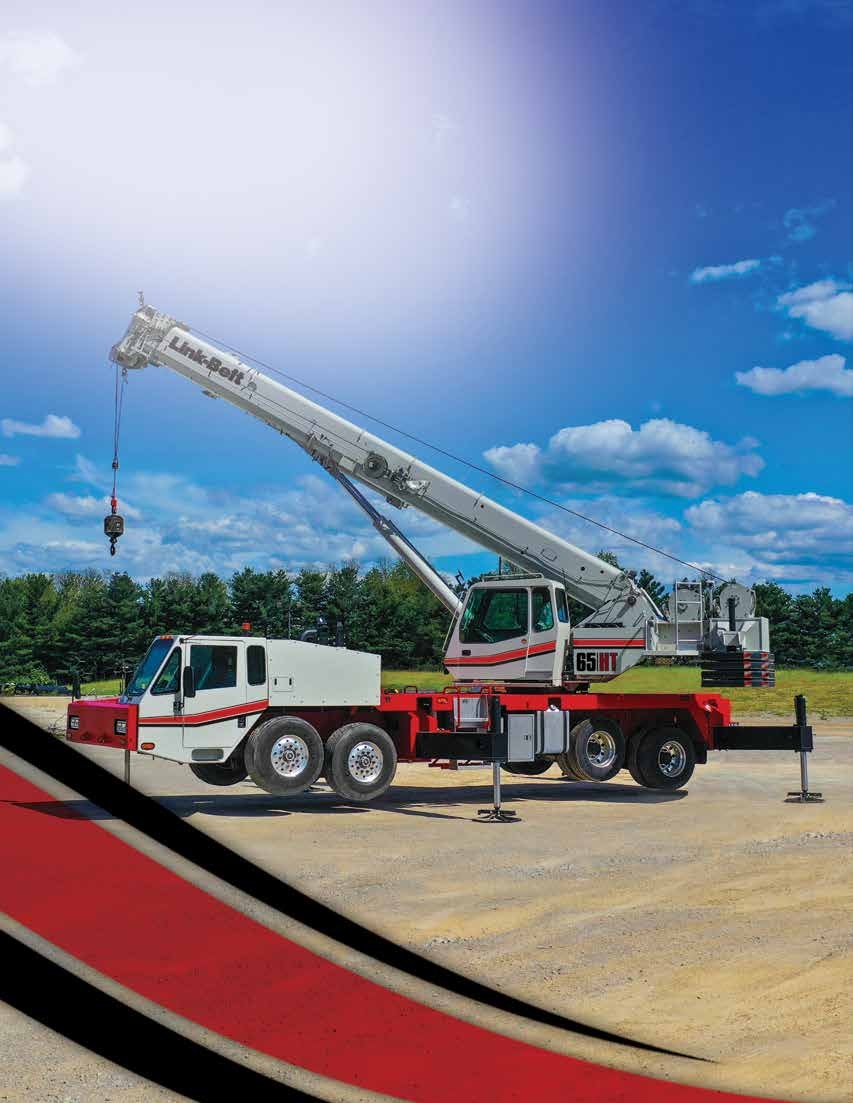

The 65|HT is a genuine highway truck: an 8×4 chassis on Raydan air-ride suspension that carries itself to the jobsite at up to 60.7 mph, no trailer required. Once positioned, its four-section boom telescopes to 115 ft, and with the optional 28.5 to 51 ft bi-fold fly it reaches a 171 ft tip height.
CALC-selectable outriggers set up in full, intermediate, or retracted positions, backed by a fifth front-bumper outrigger for tight pick-and-carry work. A Cummins L9 (370 hp) drives both the road and the crane functions, run through a ZF AS-Tronic 12-speed automated manual with no clutch pedal.
Four-section boom
CALC outriggers
Pulse
8×4 highway chassis
60.7 mph travel
Why the 65|HT
Engineered for the road and the lift.
8×4 highway chassis
Tandem steered front axles and tandem driven rear axles with an inter-axle differential lock for traction.
CALC outriggers
Four single-stage beams plus a front bumper outrigger, selectable between full, intermediate, and retracted positions.
60.7 mph travel speed
A ZF AS-Tronic 12-speed automated manual gets it to the next job without a trailer.
Four-section boom
36.75 to 115 ft with two extend modes, plus an optional bi-fold fly for 171 ft of tip height.
Air-ride suspension
Raydan Air Link walking-beam suspension front and rear, with an optional axle lift system for tire clearance on outriggers.
Link-Belt Pulse
Rated capacity limiter, anti-two-block, and telematics monitoring built into the operator’s display.
Specifications
The full technical picture.
Representative specifications for the Link-Belt 65|HT. Always refer to the in-cab Crane Rating Manual for allowable lifting capacities.
Lifting & Boom
| Maximum rated capacity | 65 US tons (55 mt) @ 7 ft |
| Main boom | 36.75 – 115 ft (11.2 – 35 m) |
| Boom sections | Four, full-power construction |
| Boom extend modes | Two (EM1, EM2) |
| Boom elevation | −2.5° to 78° |
| Max tip height (main boom) | 122 ft (37 m) |
| Max tip height (bi-fold fly) | 171 ft (52.2 m) |
| Fly | 28.5 – 51 ft bi-fold, offsettable 2–40° |
| Counterweight | 11,500 lb standard, up to 18,700 lb optional |
Engine & Drivetrain
| Engine | Cummins L9, 6-cyl diesel |
| Rated power | 370 hp (276 kW) @ 1,700 rpm |
| Peak torque | 1,250 ft·lb (1,695 N·m) @ 1,400 rpm |
| Emissions | EPA 2021 (on-highway) |
| Transmission | ZF AS-Tronic, 12F / 2R automated manual |
| Drive | 8×4 on/off-highway |
| Max travel speed | 60.7 mph (97.7 km/h) |
| Fuel tank | 75 gal (283.9 L) |
Carrier & Outriggers
| Carrier width | 8 ft 6 in (2.6 m) |
| Wheelbase | 23 ft 10 in (7.26 m) |
| Tires (front) | Four, 425/65R22.5 |
| Tires (rear) | Eight, 11R22.5 |
| Outriggers | Four single-stage + front bumper, CALC |
| Main jack reaction | 76,000 lb (338 kN) |
Winches, Swing & Tech
| Main winch rope | 550 ft (167.6 m), 5/8 in |
| Aux winch rope | 450–550 ft (137.2–167.6 m), 5/8 in |
| Max line pull | 15,822 lb (70.7 kN) |
| Swing | 360° continuous @ 2.5 rpm |
| Operating system | Link-Belt Pulse |
| Monitoring | Telematics standard |
⬇
65|HT Technical Data
Full specifications & capacity charts (PDF)
⬇
65|HT Brochure
Overview & feature highlights (PDF)
Questions, answered
Link-Belt 65|HT FAQ
How much can the Link-Belt 65|HT lift?
The Link-Belt 65|HT has a maximum rated capacity of 65 US tons (55 metric tons) at a 7-foot radius.
What is the maximum tip height of the 65|HT?
Maximum tip height is 122 ft on the main boom alone, and up to 171 ft with the optional 28.5 to 51 ft bi-fold fly.
What engine powers the Link-Belt 65|HT?
A Cummins L9 six-cylinder diesel producing 370 hp (276 kW) at 1,700 rpm, EPA 2021 compliant, paired with a ZF AS-Tronic automated manual transmission.
How fast can the 65|HT travel on the highway?
The 65|HT is governed to approximately 60.7 mph in 12th gear, allowing it to drive itself between jobsites at highway speed.
How long is the main boom on the 65|HT?
The 65|HT uses a four-section full-power boom that extends from 36.75 ft to 115 ft, with two extend modes (EM1 and EM2).
Can I rent or buy a Link-Belt 65|HT from HOLT?
Yes. HOLT Crane & Equipment sells and rents the Link-Belt 65|HT across north, northeast, central, and west Texas, and southern New Mexico, backed by factory-trained service and genuine parts. Call 877-275-1520 for availability.
