Overview
The 85’s reach, tuned lighter.
The 75|RT rides on the same five-section boom and carrier as the 85|RT, telescoping to 142 ft and reaching a 208.7 ft tip height with the optional bi-fold fly. A lighter 14,500 lb counterweight package brings it in at a 75-ton rating, useful when transport weight or permitting favors the smaller number.
Every function is orchestrated through Link-Belt Pulse 2.0, a 10-inch touchscreen operating system with an integrated rated capacity limiter, V-CALC confined-area lifting, telematics, and Wi-Fi software updates. Four steering modes and 4×2/4×4 drive get it into position; a Cummins QSB6.7 gets it there at up to 20 mph.
Five-section boom
V-CALC outriggers
Pulse 2.0
Tier 4F / Stage IV
Telematics
Why the 75|RT
Engineered for uptime and control.
Pulse 2.0 operating system
10-inch touchscreen with integrated RCL, anti-two-block, real-time load and radius, operator-set alarms, and Wi-Fi updates.
V-CALC outriggers
Variable confined-area lifting: fully extended, intermediate, or retracted footprints with live 360° charts and swing arrest.
Four steering modes
Two-wheel front, two-wheel rear, four-wheel, and crab, plus 4×2 and 4×4 drive for off-highway travel.
Five-section boom
38 to 142 ft of full-power boom with two extend modes (EM1, EM2) tuned for superior capacity at length.
Telematics standard
Cellular location, usage, maintenance, and fault-code monitoring, so your fleet team sees the machine before it calls in.
All-day cab
Fully enclosed tilting cab (0 to 20°) with ATC climate control, camera displays, and the internal RCL light bar in view.
Specifications
The full technical picture.
Representative specifications for the Link-Belt 75|RT. Always refer to the in-cab Crane Rating Manual for allowable lifting capacities.
Lifting & Boom
| Maximum rated capacity | 75 US tons (70 mt) @ 8 ft |
| Main boom | 38 – 142 ft (11.58 – 43.28 m) |
| Boom sections | Five, full-power construction |
| Boom extend modes | Two (EM1, EM2) |
| Boom elevation | −3° to 80° |
| Max tip height (main boom) | 151 ft (46.0 m) |
| Max tip height (58 ft fly) | 208.7 ft (63.6 m) |
| Fly | 35 – 58 ft bi-fold, offsettable 0–45° |
| Counterweight | 14,500 lb (6.6 t) |
Engine & Drivetrain
| Engine | Cummins QSB6.7, 6-cyl diesel |
| Rated power | 270 hp (201 kW) @ 2,000 rpm |
| Peak torque | 730 ft·lb (990 N·m) @ 1,500 rpm |
| Emissions | Tier 4F / Stage IV (Tier 3 avail.) |
| Transmission | Powershift 3-speed, 6F / 6R |
| Drive | 4×2 and 4×4 |
| Max travel speed | 20 mph (32 km/h) |
| Gradeability | 25% (14,500 lb counterweight) |
| Fuel tank | 75 gal (283.9 L) |
Carrier & Outriggers
| Carrier width | 10 ft 7 in (3.22 m) |
| Wheelbase | 14 ft 7 in (4.45 m) |
| Steering modes | Front, rear, four-wheel, crab |
| Tires | 26.5 × 25, 32-ply earthmover |
| Outriggers | Four single-stage, V-CALC |
| Main jack reaction | 93,000 lb (42,184 kg) |
Winches, Swing & Tech
| Main winch rope (rear) | 600 ft (182.9 m), 3/4 in |
| Aux winch rope (front) | 500 ft (152.4 m), 3/4 in |
| Max line pull | 18,603 lb (82.8 kN) |
| Swing | 360° continuous @ 1.9 rpm |
| Operating system | Link-Belt Pulse 2.0, 10 in |
| Monitoring | Telematics + Wi-Fi updates |
⬇
75|RT Technical Data
Full specifications & capacity charts (PDF)
⬇
75|RT Brochure
Overview & feature highlights (PDF)

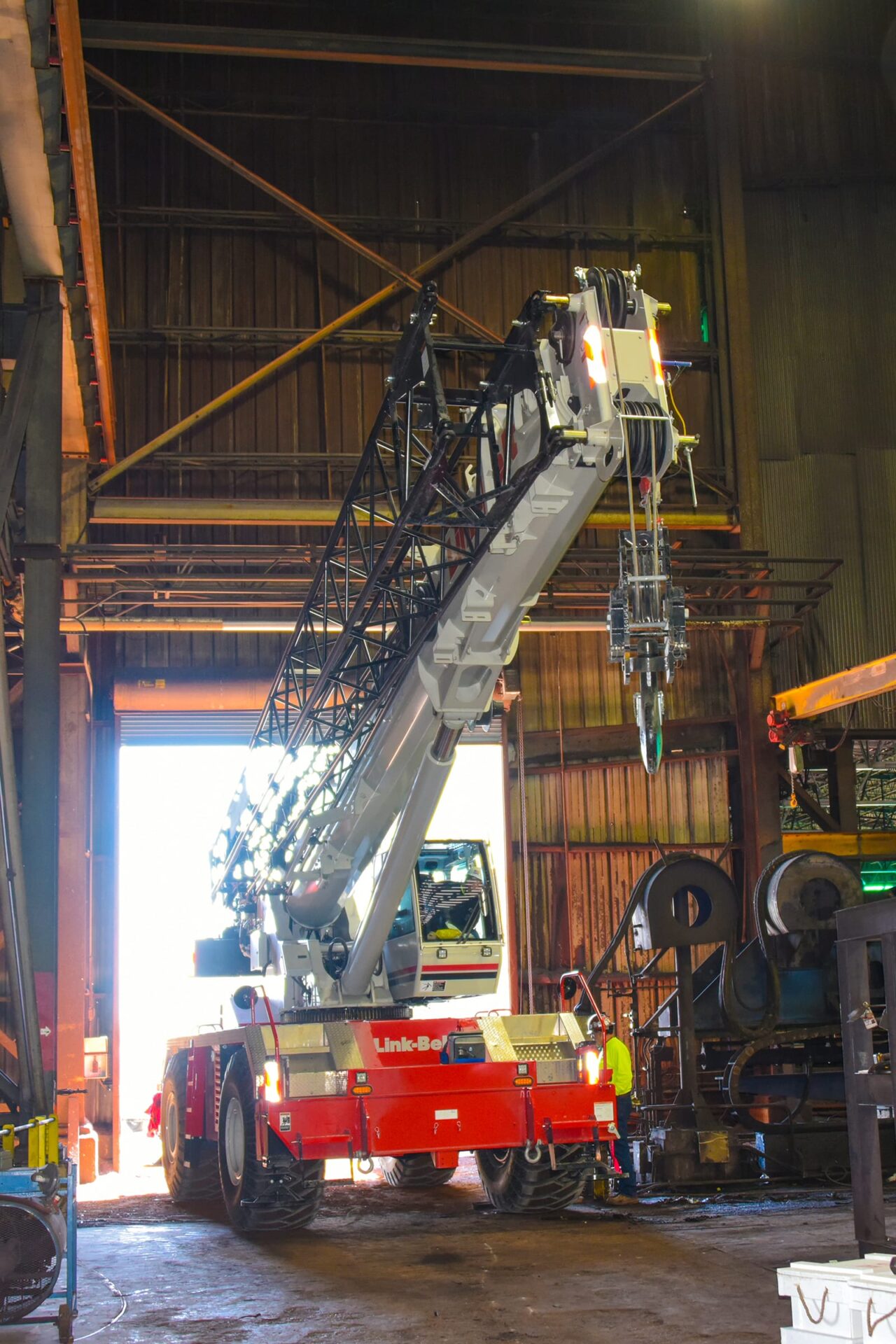

On the job
The 75|RT at work.
Questions, answered
Link-Belt 75|RT FAQ
How much can the Link-Belt 75|RT lift?
The Link-Belt 75|RT has a maximum rated capacity of 75 US tons (70 metric tons) at an 8-foot radius.
What is the maximum tip height of the 75|RT?
Maximum tip height is 151 ft (46.0 m) on the main boom, and up to 208.7 ft (63.6 m) with the optional 35 to 58 ft bi-fold fly.
What engine powers the Link-Belt 75|RT?
A Cummins QSB6.7 six-cylinder diesel producing 270 hp (201 kW) in Tier 4 Final / Stage IV configuration, or 260 hp in Tier 3 / Stage IIIA.
How long is the main boom on the 75|RT?
The 75|RT uses a five-section full-power boom that extends from 38 ft to 142 ft (11.58 to 43.28 m), with two operator-selectable extend modes (EM1 and EM2).
How is the 75|RT different from the 85|RT?
The two share the same boom, carrier, and Cummins QSB6.7 engine. A lighter 14,500 lb counterweight package tunes the 75|RT to a 75-ton rating instead of 85 tons, which can matter for transport weight and permitting.
Can I rent or buy a Link-Belt 75|RT from HOLT?
Yes. HOLT Crane & Equipment sells and rents the Link-Belt 75|RT across north, northeast, central, and west Texas, and southern New Mexico, backed by factory-trained service and genuine parts. Call 877-275-1520 for availability.
