Overview
The biggest RT Link-Belt builds.

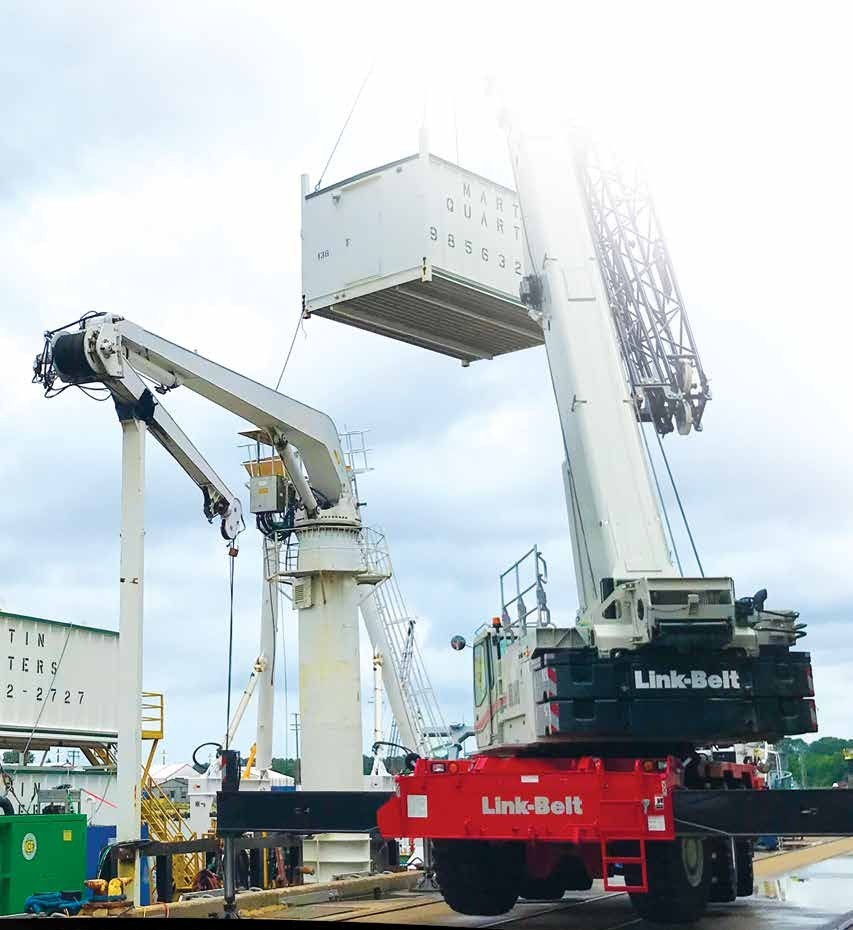

The RTC-80160 Series II is the flagship of the rough terrain line: 160 tons of capacity on a greaseless six-section boom that telescopes to 195.3 ft. Stack the bi-fold fly and three 18 ft lattice extensions and the hook tops out at a 311 ft tip height, tower reach on six wheels.
Link-Belt Pulse runs the show from the cab: integrated rated capacity limiter, boom length and angle, tip height, and audible-visual warnings on one color display. Up to 59,000 lb of pinned counterweight backs the big charts and comes off for transport, and 6×2/6×6 hydrostatic drive with four steering modes, including six-wheel and crab, moves it at up to 15.8 mph.
195.3 ft six-section boom
311 ft max tip
160 US tons
Hydrostatic 6×6
Link-Belt Pulse
Why the RTC-80160
Flagship capacity, rough terrain manners.
195.3 ft six-section boom
Greaseless, formed, extra-high-tensile construction: one base and five telescoping sections that extend independently for capacity at length.
311 ft of reach
A 10–31–55 ft bi-fold lattice fly plus one, two, or three 18 ft lattice extensions take tip height from 258 ft to a full 311 ft.
Six-wheel hydrostatic drive
Two variable-speed pumps feed six computer-controlled wheel motors, with 6×2 and 6×6 modes and steering patterns down to crab.
Link-Belt Pulse
The in-house total crane operating system: integrated RCL, boom position, tip height, and audible-visual overload warnings in the cab.
59,000 lb of counterweight
Staged counterweights pin to the upper for the big charts, with optional hydraulic removal so the machine travels lighter between jobs.
Winches built to reeve
15 in grooved drums with 900 ft of main rope and 25,955 lb of line pull, plus an optional rear winch for two-drum work.
Specifications
The full technical picture.
Representative specifications for the Link-Belt RTC-80160 Series II. Always refer to the in-cab Crane Rating Manual for allowable lifting capacities.
Lifting & Boom
| Maximum rated capacity | 160 US tons (145.1 mt) @ 7 ft |
| Main boom | 42.3 – 195.3 ft (12.9 – 59.5 m) |
| Boom sections | Six, greaseless, formed construction |
| Boom elevation | −2.5° to 80° |
| Max tip height (with fly) | 258 ft (78.6 m) |
| With 1 / 2 / 3 lattice extensions | 276 / 293 / 311 ft (84.1 / 89.3 / 94.8 m) |
| Fly | 10 – 31 – 55 ft bi-fold lattice |
| Counterweight | Up to 59,000 lb (26.7 t), pinned |
Engine & Drivetrain
| Engine | Cummins QSL9, 6-cyl diesel |
| Rated power | 345 hp (257 kW) @ 2,000 rpm |
| Emissions | Tier 4F / Stage IV (Tier 3 avail.) |
| Drive system | Hydrostatic, computer controlled |
| Drive modes | 6×2 and 6×6 |
| Max travel speed | 15.8 mph (25.4 km/h) |
| Fuel tank | 90 gal (340.6 L) |
Carrier & Outriggers
| Axles | Three |
| Wheelbase (1st to 3rd axle) | 16 ft 1 in (4.90 m) |
| Steering modes | Two-wheel front, four-wheel rear, six-wheel, crab |
| Tires | Six 23.5R25, earthmover type |
| Outriggers | Four, beam and jack, pinned to the carrier |
| Operating weight | approx. 143,199 lb (64,954 kg) |
Winches, Swing & Tech
| Main winch rope | 900 ft (274.3 m) |
| Aux winch rope (optional) | 675 or 900 ft (205.7 or 274.3 m) |
| Max line pull | 25,955 lb (115.4 kN) |
| Max line speed | 435 fpm (132.6 m/min) |
| Swing | 360° continuous @ 1.5 rpm |
| Operating system | Link-Belt Pulse |
⬇
RTC-80160 Series II Technical Data
Full specifications & capacity charts (PDF)
⬇
RTC-80160 Series II Brochure
Overview & feature highlights (PDF)
Questions, answered
Link-Belt RTC-80160 Series II FAQ
How much can the Link-Belt RTC-80160 Series II lift?
The RTC-80160 Series II has a maximum rated capacity of 160 US tons (145.1 metric tons) at a 7-foot radius. Capacity tapers with radius and boom length. Refer to the in-cab Crane Rating Manual for the exact chart for your configuration.
What is the maximum tip height of the RTC-80160?
With the bi-fold fly the tip height is 258 ft (78.6 m). Adding one, two, or three 18 ft lattice extensions raises it to 276, 293, or 311 ft (84.1, 89.3, or 94.8 m); the tallest configurations carry a minimum counterweight requirement.
What engine powers the RTC-80160 Series II?
A Cummins QSL9 six-cylinder diesel producing 345 hp (257 kW) at 2,000 rpm in Tier 4 Final / Stage IV configuration, or 350 hp in Tier 3 / Stage IIIA for markets that accept it.
Is the RTC-80160 the largest rough terrain crane Link-Belt makes?
Yes. At 160 US tons with a 195.3 ft six-section boom, it is the largest-capacity, longest-boom rough terrain crane in the Link-Belt line.
Can I rent or buy a Link-Belt RTC-80160 from HOLT?
Yes. HOLT Crane & Equipment sells and rents the Link-Belt RTC-80160 Series II across north, northeast, central, and west Texas, and southern New Mexico, backed by factory-trained service and genuine parts. Call 877-275-1520 for current availability.
Put an RTC-80160 on your next lift.
Tell us the job and we’ll match the machine, for sale or rental, with the parts and service to keep it lifting.
