Overview

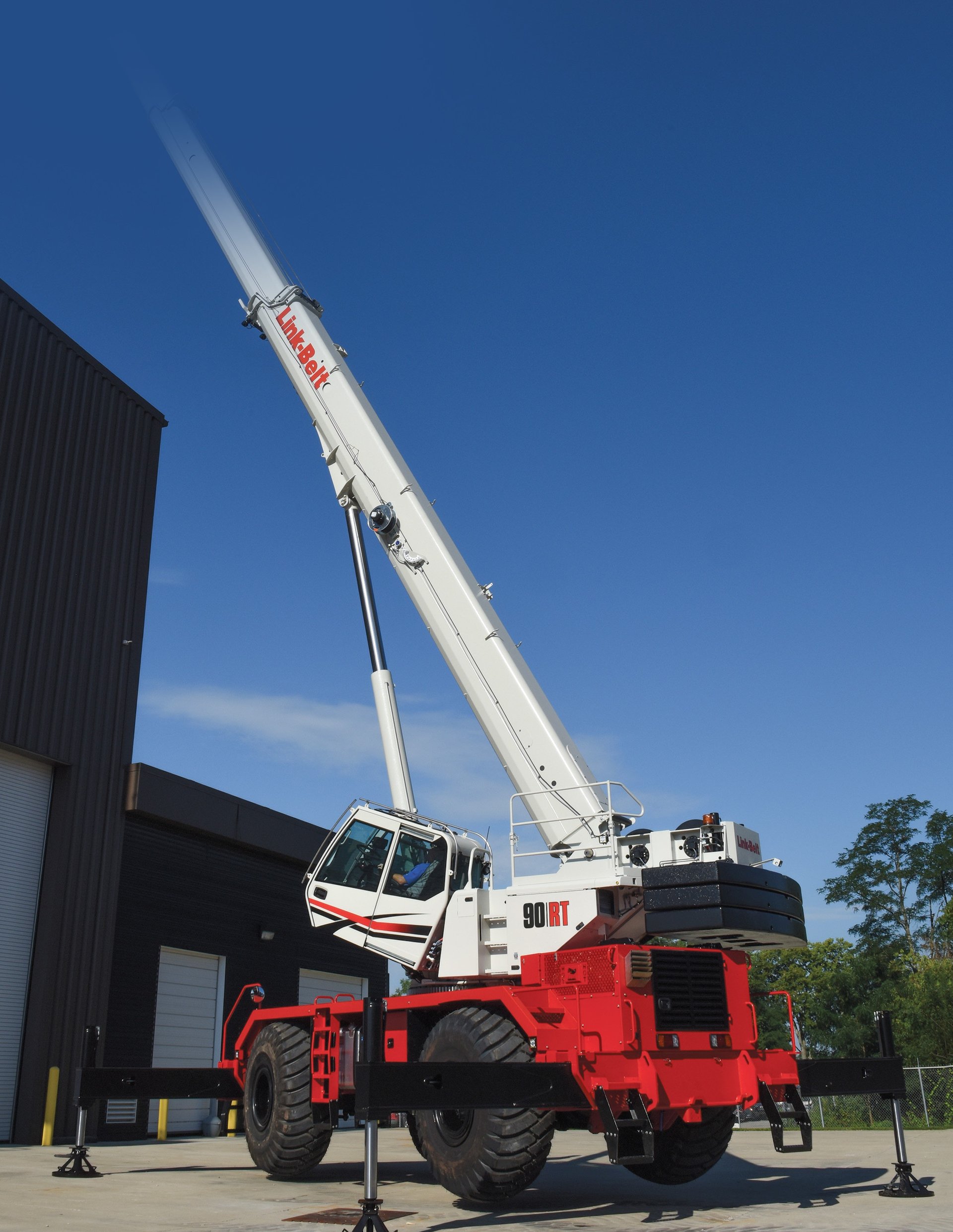

The newest |RT, ninety tons strong.
The 90|RT slots into Link-Belt’s five-section |RT platform, purpose-built for tight, unimproved sites. Its formed boom telescopes to 155 ft, and with the offsettable bi-fold SmartFly and a 16 ft lattice extension it reaches a 237 ft tip height. V-CALC lets you set outriggers in confined footprints and still know your exact rated capacity in real time.
Every function is orchestrated through Link-Belt Pulse 2.0, a 10-inch touchscreen operating system with an integrated rated capacity limiter, telematics, and Wi-Fi software updates. Four steering modes and 4×2/4×4 drive get it into position; a Cummins QSB6.7 gets it there at up to 15 mph.
Five-section boom
SmartFly reach
V-CALC outriggers
Pulse 2.0
Tier 4F / Stage V
Why the 90|RT
The 100|RT’s platform, tuned to ninety.
Pulse 2.0 operating system
10-inch touchscreen with integrated RCL, anti-two-block, real-time load and radius, operator-set alarms, and Wi-Fi updates.
V-CALC outriggers
Variable confined-area lifting: fully extended, intermediate, or retracted footprints with live 360° charts and swing arrest.
SmartFly reach
The 35 to 58 ft bi-fold lattice SmartFly offsets for up-and-over work, and a 16 ft lattice extension stretches tip height to 237 ft.
Four steering modes
Two-wheel front, two-wheel rear, four-wheel, and crab, plus 4×2 and 4×4 drive for off-highway travel.
Telematics standard
Cellular location, usage, maintenance, and fault-code monitoring, so your fleet team sees the machine before it calls in.
Five-section boom
40.6 to 155 ft of formed, extra-high-tensile boom with two extend modes tuned for superior capacity at length.
Specifications
The full technical picture.
Representative specifications for the Link-Belt 90|RT. Always refer to the in-cab Crane Rating Manual for allowable lifting capacities.
Lifting & Boom
| Maximum rated capacity | 90 US tons (81.6 mt) @ 8 ft |
| Main boom | 40.6 – 155 ft (12.3 – 47.2 m) |
| Boom sections | Five, formed construction |
| Boom extend modes | Two (EM1, EM2) |
| Boom elevation | −2.6° to 80° |
| Max tip height (main boom) | 164.6 ft (50.2 m) |
| Max tip height (SmartFly) | 221.4 ft (67.5 m) |
| Max tip height (fly & extension) | 237 ft (72.3 m) |
| Fly | 35 – 58 ft bi-fold SmartFly, offsettable |
| Counterweight | 28,800 lb (13.2 t) |
Engine & Drivetrain
| Engine | Cummins QSB6.7, 6-cyl diesel |
| Rated power | 232 hp (173 kW) @ 2,000 rpm |
| Peak torque | 700 ft·lb (949 N·m) @ 1,500 rpm |
| Emissions | Tier 4F / Stage V (Tier 3 avail.) |
| Transmission | Powershift 3-speed, 6F / 6R |
| Drive | 4×2 and 4×4 |
| Max travel speed | 15 mph (24.1 km/h) |
| Fuel tank | 75 gal (283.9 L) |
Carrier & Outriggers
| Wheelbase | 14 ft 4 in (4.37 m) |
| Steering modes | Front, rear, four-wheel, crab |
| Tires | 29.5 × 25, earthmover type |
| Outriggers | Four single-stage, V-CALC |
| Main jack reaction | 112,600 lb (51,074 kg) |
| Gross vehicle weight | approx. 122,257 lb (55,455 kg) |
Winches, Swing & Tech
| Max line pull | 23,632 lb (105.1 kN) |
| Max line speed | 354 fpm (107.9 m/min) |
| Swing | 360° continuous @ 1.9 rpm |
| Operating system | Link-Belt Pulse 2.0, 10 in |
| Monitoring | Telematics + Wi-Fi updates |
⬇
90|RT Technical Data
Full specifications & capacity charts (PDF)
⬇
90|RT Flyer
Overview & feature highlights (PDF)
Questions, answered
Link-Belt 90|RT FAQ
How much can the Link-Belt 90|RT lift?
The Link-Belt 90|RT has a maximum rated capacity of 90 US tons (81.6 metric tons) at an 8-foot radius. Capacity tapers with radius and boom length. Refer to the in-cab Crane Rating Manual for the exact chart for your configuration.
What is the maximum tip height of the 90|RT?
Maximum tip height is 164.6 ft (50.2 m) on the main boom, 221.4 ft (67.5 m) with the optional bi-fold SmartFly, and 237 ft (72.3 m) with the fly plus a 16 ft lattice extension.
What engine powers the Link-Belt 90|RT?
A Cummins QSB6.7 six-cylinder diesel producing 232 hp (173 kW) in Tier 4 Final / Stage V configuration, or 240 hp in Tier 3 / Stage IIIA for markets that accept it.
How does the 90|RT relate to the rest of the |RT line?
It pairs a 90-ton chart with the same 155 ft five-section boom length as the 100|RT, along with the same technology package: Pulse 2.0, V-CALC outriggers, telematics, and Cummins QSB6.7 power.
Can I rent or buy a Link-Belt 90|RT from HOLT?
Yes. HOLT Crane & Equipment sells and rents the Link-Belt 90|RT across north, northeast, central, and west Texas, and southern New Mexico, backed by factory-trained service and genuine parts. Call 877-275-1520 for current availability.
